RtpPayload Class Reference

Abstract base class for RTP payload type handlers. More...

#include <rtppayload.h>

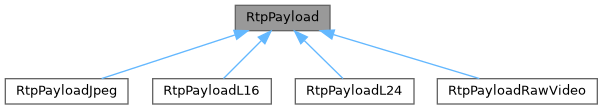

Inheritance diagram for RtpPayload:

Public Member Functions
virtual	~RtpPayload ()=default
	Destructor.
virtual uint8_t	payloadType () const =0
	Returns the RTP payload type number.
virtual uint32_t	clockRate () const =0
	Returns the RTP timestamp clock rate in Hz.
virtual RtpPacket::List	pack (const void *mediaData, size_t size)=0
	Fragments media data into RTP payload packets.
virtual Buffer	unpack (const RtpPacket::List &packets)=0
	Reassembles RTP payload packets into media data.
virtual size_t	maxPayloadSize () const
	Returns the maximum payload size per packet.

Protected Member Functions
	RtpPayload ()=default
	Default constructor (protected; use a concrete subclass).

Detailed Description

Abstract base class for RTP payload type handlers.

RtpPayload defines the interface for packing media data into RTP payload packets and unpacking packets back into media data. Packing produces a list of RtpPackets that share a single buffer allocation for efficiency.

Concrete subclasses implement specific payload formats:

• RtpPayloadL24 — 24-bit linear audio (AES67)
• RtpPayloadL16 — 16-bit linear audio
• RtpPayloadRawVideo — RFC 4175 raw video (ST 2110-20)
• RtpPayloadJpeg — RFC 2435 JPEG (Motion JPEG)

Member Function Documentation

clockRate()

virtual uint32_t RtpPayload::clockRate ( ) const

pure virtual

Returns the RTP timestamp clock rate in Hz.

Implemented in RtpPayloadL24, RtpPayloadL16, RtpPayloadRawVideo, and RtpPayloadJpeg.

maxPayloadSize()

virtual size_t RtpPayload::maxPayloadSize ( ) const

inlinevirtual

Returns the maximum payload size per packet.

Default is 1200 bytes (MTU-safe, accounts for IP/UDP headers within a 1500-byte Ethernet MTU).

Returns

Maximum payload bytes per packet.

pack()

virtual RtpPacket::List RtpPayload::pack ( const void *  mediaData, size_t  size  )

pure virtual

Fragments media data into RTP payload packets.

Each returned RtpPacket includes space for the 12-byte RTP header at the start, followed by any payload-specific header, followed by the media data fragment. All returned packets share a single Buffer::Ptr.

Parameters

mediaData	Pointer to the media data.
size	Size of the media data in bytes.

Returns

List of RtpPackets sharing one buffer.

Implemented in RtpPayloadL24, RtpPayloadL16, RtpPayloadRawVideo, and RtpPayloadJpeg.

payloadType()

virtual uint8_t RtpPayload::payloadType ( ) const

pure virtual

Returns the RTP payload type number.

Implemented in RtpPayloadL24, RtpPayloadL16, RtpPayloadRawVideo, and RtpPayloadJpeg.

unpack()

virtual Buffer RtpPayload::unpack ( const RtpPacket::List &  packets )

pure virtual

Reassembles RTP payload packets into media data.

Parameters

packets

The list of packets to reassemble.

Returns

Buffer containing the reassembled media data.

Implemented in RtpPayloadL24, RtpPayloadL16, RtpPayloadRawVideo, and RtpPayloadJpeg.

---

The documentation for this class was generated from the following file:

• include/promeki/network/rtppayload.h
