Base class for an audio processing block This object defines an interface for composing an audio processing chain. More...

#include <audioblock.h>

Inheritance diagram for AudioBlock:

[legend]

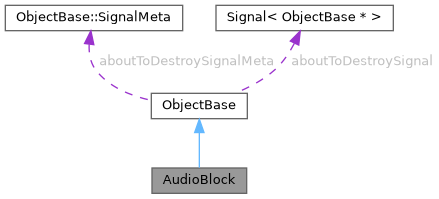

Collaboration diagram for AudioBlock:

[legend]

Classes
class	Config
	Config used by the derived class to configure AudioBlock This config is passed in by the derived class to configure the audio block on instantiation. More...

Public Member Functions
	AudioBlock (const Config &config, ObjectBase *parent=nullptr)
	Constructs an AudioBlock with a given configuration.

virtual	~AudioBlock ()
	Virtual destructor.

bool	isSource () const
	Returns true if the audio block is a source.

bool	isSourceValid (size_t val) const
	Returns true if the given source index is valid.

size_t	sourceChannels () const
	Returns the number of channels this object can source.

virtual AudioDesc	sourceDesc (size_t channel) const
	Returns the audio description for a given source channel.

virtual bool	setSourceDesc (size_t channel, const AudioDesc &val)
	Sets the audio description for a given source channel.

virtual String	sourceName (size_t channel) const
	Returns the name of a given source channel.

virtual bool	setSourceName (size_t channel, const String &val)
	Sets the name of a given source channel.

virtual ssize_t	sourceSamplesAvailable (size_t channel) const
	Returns the number of samples available on a source channel.

	PROMEKI_SIGNAL (sourceHasSamples, AudioBlock *, size_t)
	Signal emitted when a source has samples available.

bool	isSink () const
	Returns true if the object is an audio sink.

bool	isSinkValid (size_t val) const
	Returns true if the given sink channel index is valid.

size_t	sinkChannels () const
	Returns the number of sink channels.

virtual AudioDesc	sinkDesc (size_t channel) const
	Returns the audio description of a given sink channel.

virtual bool	setSinkDesc (size_t channel, const AudioDesc &val)
	Sets the audio description of a given sink channel.

virtual String	sinkName (size_t channel) const
	Returns the name of a given sink channel.

virtual bool	setSinkName (size_t channel, const String &val)
	Sets the name of a given sink channel.

virtual ssize_t	sinkSamplesAllowed (size_t channel) const
	Returns the number of samples a sink channel can currently accept.

	PROMEKI_SIGNAL (sinkReadyForSamples, AudioBlock *, size_t)
	Signal emitted whenever a sink channel can accept more samples.

Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.

virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.

ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.

void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.

const ObjectBaseList &	childList () const
	Returns a list of children of this object.

template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.

EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.

void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.

int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.

void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().

template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > signal, Slot< Args... > slot)

Additional Inherited Members
Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.

Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.

template<typename... Args>
static void	connect (Signal< Args... > signal, Slot< Args... > slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object

Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)

Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"

static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)

Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.

virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.

virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.

Detailed Description

Base class for an audio processing block This object defines an interface for composing an audio processing chain.

Constructor & Destructor Documentation

◆ AudioBlock()

AudioBlock::AudioBlock	(	const Config &	config,
		ObjectBase *	parent = `nullptr`
	)

Constructs an AudioBlock with a given configuration.

Parameters

config	Block configuration specifying source and sink channel counts.
parent	Optional parent object.

Member Function Documentation

◆ isSinkValid()

bool AudioBlock::isSinkValid ( size_t val ) const

inline

Returns true if the given sink channel index is valid.

Parameters

val	Zero-based sink channel index to check.

Returns: true if the index is within the sink channel range.

◆ isSourceValid()

bool AudioBlock::isSourceValid ( size_t val ) const

inline

Returns true if the given source index is valid.

Parameters

val	Zero-based source channel index to check.

Returns: true if the index is within the source channel range.

◆ PROMEKI_SIGNAL() [1/2]

AudioBlock::PROMEKI_SIGNAL	(	sinkReadyForSamples	,
		AudioBlock *	,
		size_t
	)

Signal emitted whenever a sink channel can accept more samples.

Signal:

◆ PROMEKI_SIGNAL() [2/2]

AudioBlock::PROMEKI_SIGNAL	(	sourceHasSamples	,
		AudioBlock *	,
		size_t
	)

Signal emitted when a source has samples available.

Signal:

◆ setSinkDesc()

virtual bool AudioBlock::setSinkDesc	(	size_t	channel,
		const AudioDesc &	val
	)

virtual

Sets the audio description of a given sink channel.

Parameters

channel	Zero-based sink channel index.
val	The AudioDesc to set.

Returns: true on success, false if the channel index is invalid.

◆ setSinkName()

virtual bool AudioBlock::setSinkName	(	size_t	channel,
		const String &	val
	)

virtual

Sets the name of a given sink channel.

Parameters

channel	Zero-based sink channel index.
val	The name to assign.

Returns: true on success, false if the channel index is invalid.

◆ setSourceDesc()

virtual bool AudioBlock::setSourceDesc	(	size_t	channel,
		const AudioDesc &	val
	)

virtual

Sets the audio description for a given source channel.

Parameters

channel	Zero-based source channel index.
val	The AudioDesc to set.

Returns: true on success, false if the channel index is invalid.

◆ setSourceName()

virtual bool AudioBlock::setSourceName	(	size_t	channel,
		const String &	val
	)

virtual

Sets the name of a given source channel.

Parameters

channel	Zero-based source channel index.
val	The name to assign.

Returns: true on success, false if the channel index is invalid.

◆ sinkDesc()

virtual AudioDesc AudioBlock::sinkDesc ( size_t channel ) const

virtual

Returns the audio description of a given sink channel.

Parameters

channel Zero-based sink channel index.

Returns: The AudioDesc for the specified channel.

◆ sinkName()

virtual String AudioBlock::sinkName ( size_t channel ) const

virtual

Returns the name of a given sink channel.

Parameters

channel Zero-based sink channel index.

Returns: The channel name.

◆ sinkSamplesAllowed()

virtual ssize_t AudioBlock::sinkSamplesAllowed ( size_t channel ) const

virtual

Returns the number of samples a sink channel can currently accept.

Parameters

channel Zero-based sink channel index.

Returns: Number of samples the channel can accept, or -1 if unknown.

◆ sourceDesc()

virtual AudioDesc AudioBlock::sourceDesc ( size_t channel ) const

virtual

Returns the audio description for a given source channel.

Parameters

channel Zero-based source channel index.

Returns: The AudioDesc for the specified channel.

◆ sourceName()

virtual String AudioBlock::sourceName ( size_t channel ) const

virtual

Returns the name of a given source channel.

Parameters

channel Zero-based source channel index.

Returns: The channel name.

◆ sourceSamplesAvailable()

virtual ssize_t AudioBlock::sourceSamplesAvailable ( size_t channel ) const

virtual

Returns the number of samples available on a source channel.

Parameters

channel Zero-based source channel index.

Returns: Number of samples available, or -1 if unknown.

The documentation for this class was generated from the following file:

include/promeki/proav/audioblock.h
