ObjectBase Class Reference

Base object for promeki. More...

#include <objectbase.h>

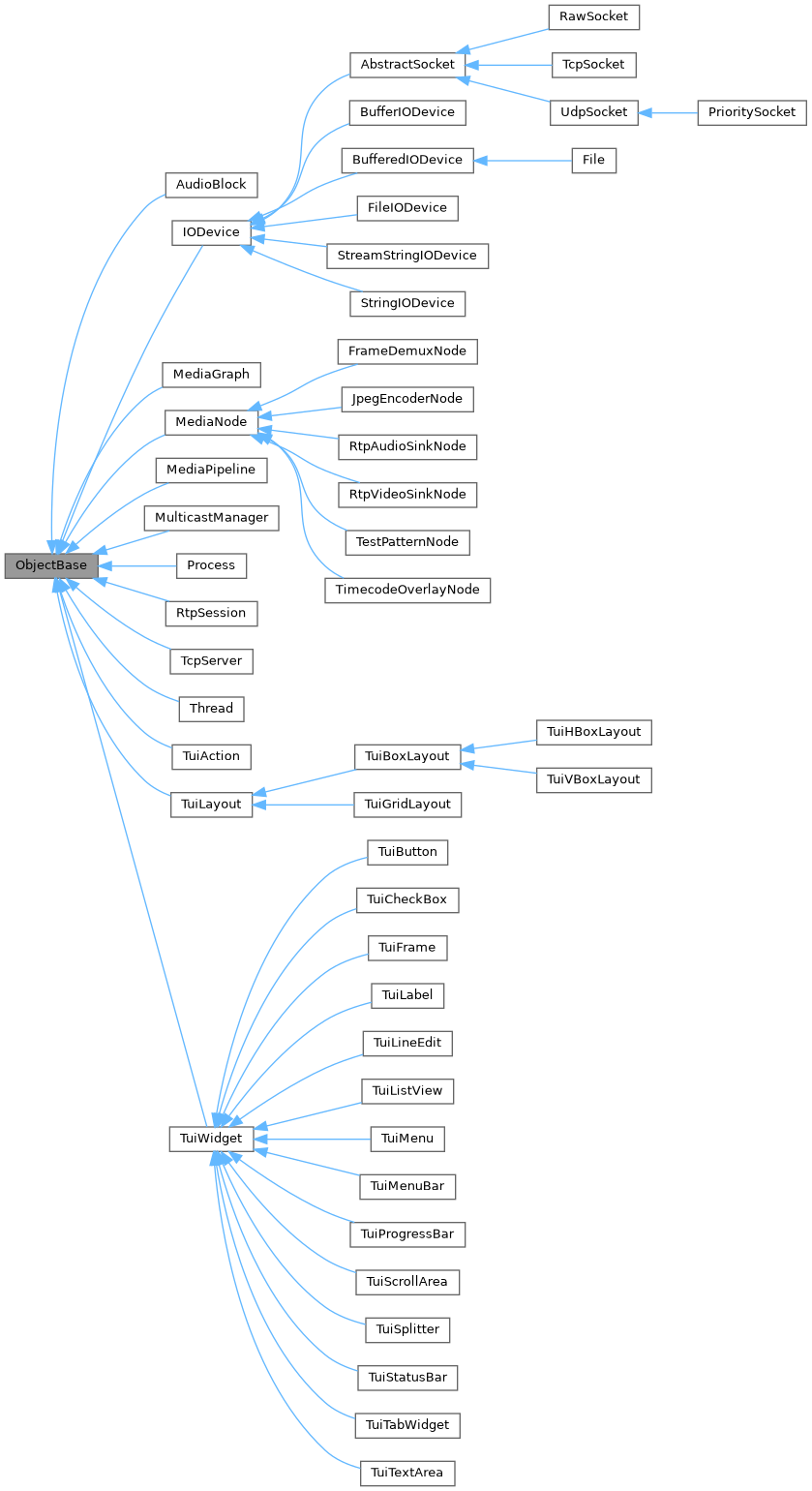

Inheritance diagram for ObjectBase:

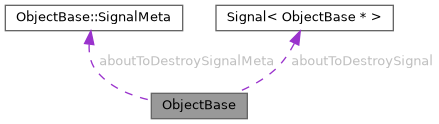

Collaboration diagram for ObjectBase:

Classes
class	MetaInfo
	Captures all the metadata about this object. More...
class	SignalMeta
	Metadata entry describing a signal on an ObjectBase-derived class. More...
class	SlotMeta
	Metadata entry describing a slot on an ObjectBase-derived class. More...

Public Types
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.

Public Member Functions
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.
virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.
ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.
void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.
const ObjectBaseList &	childList () const
	Returns a list of children of this object.
template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.
EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.
void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.
int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.
void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().
template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > *signal, Slot< Args... > *slot)

Static Public Member Functions
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.
template<typename... Args>
static void	connect (Signal< Args... > *signal, Slot< Args... > *slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object

Public Attributes
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)

Static Public Attributes
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"
static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)

Protected Member Functions
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.
virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.
virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.

Friends
class	ObjectBasePtr
class	EventLoop

Detailed Description

Base object for promeki.

This object is used by promeki to provide certain objects with a base level of funtionality which include:

• Signals and slots
• Some level of meta type and reflection

The object was modeled from the Qt QObject, although isn't quite as versitle but it trades off that versatility for not needing an external meta object compiler.

Constructor & Destructor Documentation

ObjectBase()

ObjectBase::ObjectBase

(

ObjectBase *

p = nullptr

)

Default ObjectBase constructor.

Parameters

[in]

p

Parent object

This is the default constructor you'll normally use to construct the ObjectBase object in your derived class constructor. If your class is meant to have a parent object, you should pass it in. This will ensure that this object is destroyed if the parent is destroyed.

Member Function Documentation

childList()

const ObjectBaseList & ObjectBase::childList ( ) const

inline

Returns a list of children of this object.

Returns

List of children

event()

virtual void ObjectBase::event ( Event *  e )

protectedvirtual

Called by EventLoop to deliver events to this object.

The default implementation dispatches TimerEvent to timerEvent() and accepts it.

Parameters

e	The event to handle.

Reimplemented in TuiWidget.

eventLoop()

EventLoop * ObjectBase::eventLoop ( ) const

inline

Returns the EventLoop this object is affiliated with.

Returns

The EventLoop set at construction time, or nullptr.

moveToThread()

void ObjectBase::moveToThread

(

EventLoop *

loop

)

Changes the EventLoop affinity of this object.

Must be called from the object's current thread. The object must have no parent. Children are moved recursively. Asserts on violation of either constraint.

Parameters

loop	The new EventLoop to affiliate with.

parent()

ObjectBase * ObjectBase::parent ( ) const

inline

Returns the parent object, if one. nullptr if none.

Returns

Parent object pointer, or nullptr if none.

registerSlot()

template<typename... Args>

int ObjectBase::registerSlot ( Slot< Args... > *  slot )

inline

Registers a slot with this object and assigns it an ID.

Template Parameters

Args	The slot's parameter types.

Parameters

slot	Pointer to the Slot to register.

Returns

The assigned slot ID.

startTimer()

int ObjectBase::startTimer	(	unsigned int	intervalMs,
		bool	singleShot = false
	)

Starts a timer on this object's EventLoop.

TimerEvent will be delivered to this object's timerEvent() method each time the timer fires.

Parameters

intervalMs	The timer interval in milliseconds.
singleShot	If true, the timer fires once and is removed.

Returns

The timer ID, or -1 if no EventLoop is available.

stopTimer()

void ObjectBase::stopTimer

(

int

timerId

)

Stops a timer previously started with startTimer().

Parameters

timerId

The timer ID returned by startTimer().

timerEvent()

virtual void ObjectBase::timerEvent ( TimerEvent *  e )

protectedvirtual

Called when a timer fires for this object.

Override this in derived classes to handle timer events. The default implementation does nothing.

Parameters

e	The timer event.

Reimplemented in TuiStatusBar.

Member Data Documentation

aboutToDestroySignalName

constexpr const char* ObjectBase::aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"

staticconstexpr

Object is about to be destroyed This signal is emitted when the object is about to be destroyed.

NOTE: when this is emitted the object has mostly already been torn down so you'll not be able to cast it to a derived object.

Signal:

---

The documentation for this class was generated from the following file:

• include/promeki/core/objectbase.h
