Base class for all TUI widgets. More...

#include <widget.h>

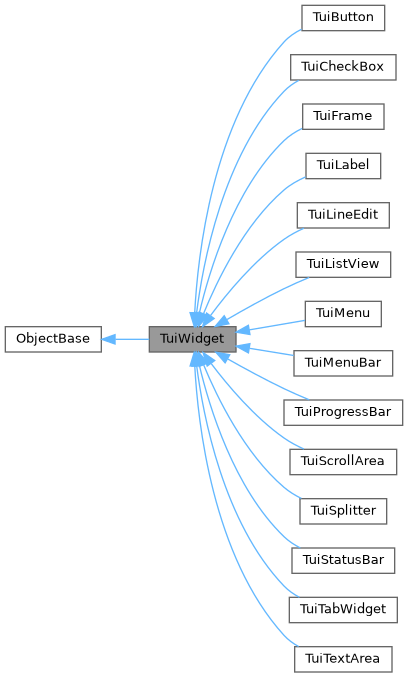

Inheritance diagram for TuiWidget:

[legend]

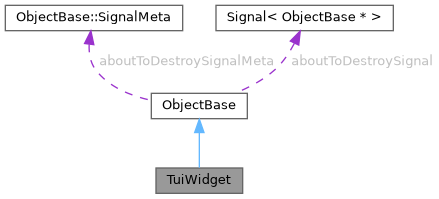

Collaboration diagram for TuiWidget:

[legend]

Public Member Functions
	TuiWidget (ObjectBase *parent=nullptr)
	Constructs a TuiWidget.

virtual	~TuiWidget ()
	Destructor.

const Rect2Di32 &	geometry () const
	Returns the geometry relative to parent.

void	setGeometry (const Rect2Di32 &rect)
	Sets the geometry.

int	x () const
	Returns the X coordinate relative to parent.

int	y () const
	Returns the Y coordinate relative to parent.

int	width () const
	Returns the width.

int	height () const
	Returns the height.

Size2Di32	size () const
	Returns the size.

const Size2Di32 &	minimumSize () const
	Returns the minimum size constraint.

void	setMinimumSize (const Size2Di32 &size)
	Sets the minimum size constraint.

const Size2Di32 &	maximumSize () const
	Returns the maximum size constraint.

void	setMaximumSize (const Size2Di32 &size)
	Sets the maximum size constraint.

TuiSizePolicy	sizePolicy () const
	Returns the size policy.

void	setSizePolicy (TuiSizePolicy policy)
	Sets the size policy.

bool	isVisible () const
	Returns true if the widget's own visibility flag is set.

bool	isEffectivelyVisible () const
	Returns true if the widget and all its ancestors are visible.

void	show ()
	Shows the widget.

void	hide ()
	Hides the widget.

void	setVisible (bool visible)
	Sets visibility.

bool	isEnabled () const
	Returns true if the widget is enabled.

void	setEnabled (bool enabled)
	Sets enabled state.

TuiFocusPolicy	focusPolicy () const
	Returns the focus policy.

void	setFocusPolicy (TuiFocusPolicy policy)
	Sets the focus policy.

bool	hasFocus () const
	Returns true if this widget has focus.

void	setFocus ()
	Requests focus for this widget.

void	update ()
	Marks the widget as needing a repaint.

bool	isDirty () const
	Returns true if the widget needs repainting.

void	clearDirty ()
	Clears the dirty flag.

TuiLayout *	layout () const
	Returns the layout, if one is set.

void	setLayout (TuiLayout *layout)
	Sets the layout for this widget.

Point2Di32	mapToParent (const Point2Di32 &p) const
	Maps a local point to the parent's coordinate system.

Point2Di32	mapFromParent (const Point2Di32 &p) const
	Maps a parent point to local coordinates.

Point2Di32	mapToGlobal (const Point2Di32 &p) const
	Maps a local point to global (screen) coordinates.

Point2Di32	mapFromGlobal (const Point2Di32 &p) const
	Maps a global (screen) point to local coordinates.

virtual Size2Di32	sizeHint () const
	Returns the preferred size. Override in subclasses.

virtual Size2Di32	minimumSizeHint () const
	Returns the minimum size hint. Override in subclasses.

Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.

virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.

ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.

void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.

const ObjectBaseList &	childList () const
	Returns a list of children of this object.

template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.

EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.

void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.

int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.

void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().

template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > signal, Slot< Args... > slot)

Protected Member Functions
virtual void	paintEvent (TuiPaintEvent *e)
	Called to paint the widget. Override in subclasses.

virtual void	keyEvent (KeyEvent *e)
	Called on keyboard input. Override in subclasses.

virtual void	mouseEvent (MouseEvent *e)
	Called on mouse input. Override in subclasses.

virtual void	resizeEvent (TuiResizeEvent *e)
	Called when the widget is resized. Override in subclasses.

virtual void	focusInEvent (Event *e)
	Called when the widget gains focus.

virtual void	focusOutEvent (Event *e)
	Called when the widget loses focus.

void	event (Event *e) override
	Event dispatch override.

Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.

virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.

Friends
class	TuiApplication

Additional Inherited Members
Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.

Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.

template<typename... Args>
static void	connect (Signal< Args... > signal, Slot< Args... > slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object

Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)

Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"

static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)

Detailed Description

Base class for all TUI widgets.

Derives from ObjectBase to inherit signals/slots, parent/child relationships, event dispatch, and timer support. Provides geometry management, focus handling, visibility control, and virtual methods

Example: class MyWidget : public TuiWidget {

protected:

void paintEvent(TuiPaintEvent *) override {

Painter p(this);

p.drawText(0, 0, "Hello, TUI!");

}

};

List
Dynamic array container wrapping std::vector.
Definition list.h:40

TuiPaintEvent
Event delivered when a TUI widget needs to repaint.
Definition widget.h:28

TuiWidget
Base class for all TUI widgets.
Definition widget.h:88

for paint/key/mouse/resize events.

Constructor & Destructor Documentation

◆ TuiWidget()

TuiWidget::TuiWidget ( ObjectBase * parent = nullptr )

Constructs a TuiWidget.

Parameters

parent Optional parent widget.

Member Function Documentation

◆ event()

void TuiWidget::event ( Event * e )

overrideprotectedvirtual

Event dispatch override.

Reimplemented from ObjectBase.

◆ focusInEvent()

virtual void TuiWidget::focusInEvent ( Event * e )

protectedvirtual

Called when the widget gains focus.

Reimplemented in TuiButton, TuiCheckBox, TuiLineEdit, and TuiTabWidget.

◆ focusOutEvent()

virtual void TuiWidget::focusOutEvent ( Event * e )

protectedvirtual

Called when the widget loses focus.

Reimplemented in TuiButton, TuiCheckBox, TuiLineEdit, and TuiTabWidget.

◆ isEffectivelyVisible()

bool TuiWidget::isEffectivelyVisible ( ) const

Returns true if the widget and all its ancestors are visible.

A widget is effectively visible only if its own visibility flag is set AND every TuiWidget ancestor is also visible.

◆ keyEvent()

virtual void TuiWidget::keyEvent ( KeyEvent * e )

protectedvirtual

Called on keyboard input. Override in subclasses.

Reimplemented in TuiButton, TuiCheckBox, TuiLineEdit, TuiListView, TuiMenu, TuiMenuBar, TuiScrollArea, TuiSplitter, TuiTabWidget, and TuiTextArea.

◆ minimumSizeHint()

virtual Size2Di32 TuiWidget::minimumSizeHint ( ) const

virtual

Returns the minimum size hint. Override in subclasses.

Reimplemented in TuiButton.

◆ mouseEvent()

virtual void TuiWidget::mouseEvent ( MouseEvent * e )

protectedvirtual

Called on mouse input. Override in subclasses.

Reimplemented in TuiButton, TuiCheckBox, TuiListView, TuiSplitter, and TuiTabWidget.

◆ paintEvent()

virtual void TuiWidget::paintEvent ( TuiPaintEvent * e )

protectedvirtual

Called to paint the widget. Override in subclasses.

Reimplemented in TuiButton, TuiCheckBox, TuiFrame, TuiLabel, TuiLineEdit, TuiListView, TuiMenu, TuiMenuBar, TuiProgressBar, TuiScrollArea, TuiSplitter, TuiStatusBar, TuiTabWidget, and TuiTextArea.

◆ resizeEvent()

virtual void TuiWidget::resizeEvent ( TuiResizeEvent * e )

protectedvirtual

Called when the widget is resized. Override in subclasses.

Reimplemented in TuiFrame, TuiScrollArea, TuiSplitter, and TuiTabWidget.

◆ sizeHint()

virtual Size2Di32 TuiWidget::sizeHint ( ) const

virtual

Returns the preferred size. Override in subclasses.

Reimplemented in TuiButton, TuiCheckBox, TuiFrame, TuiLabel, TuiLineEdit, TuiListView, TuiMenu, TuiMenuBar, TuiProgressBar, TuiScrollArea, TuiSplitter, TuiStatusBar, TuiTabWidget, and TuiTextArea.

The documentation for this class was generated from the following file:

include/promeki/tui/widget.h
