Abstract base class for TUI layout managers. More...

#include <layout.h>

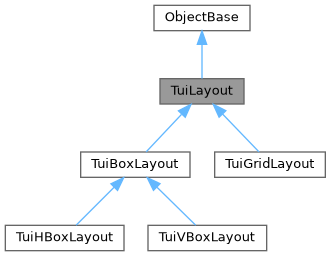

Inheritance diagram for TuiLayout:

[legend]

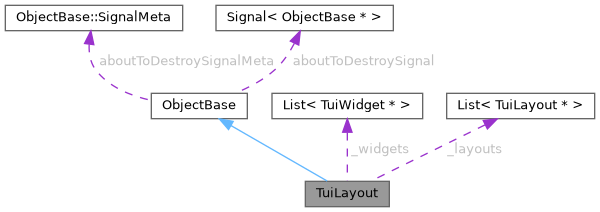

Collaboration diagram for TuiLayout:

[legend]

Public Member Functions
	TuiLayout (ObjectBase *parent=nullptr)

virtual void	addWidget (TuiWidget *widget)
	Adds a widget to this layout.

void	removeWidget (TuiWidget *widget)
	Removes a widget from this layout.

virtual void	addLayout (TuiLayout *layout)
	Adds a nested layout.

void	setMargins (int top, int right, int bottom, int left)
	Sets the margins (top, right, bottom, left).

void	setMargins (int margin)
	Sets uniform margins.

void	setSpacing (int spacing)
	Sets the spacing between items.

int	spacing () const
	Returns the spacing.

void	margins (int &top, int &right, int &bottom, int &left) const
	Returns the margins.

virtual void	calculateLayout (const Rect2Di32 &available)=0
	Calculates and applies the layout to the given rectangle.

virtual Size2Di32	sizeHint () const
	Returns the preferred size for this layout based on its children.

const List< TuiWidget * > &	widgets () const
	Returns the list of managed widgets.

const List< TuiLayout * > &	layouts () const
	Returns the list of sub-layouts.

Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.

virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.

ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.

void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.

const ObjectBaseList &	childList () const
	Returns a list of children of this object.

template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.

EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.

void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.

int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.

void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().

template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > signal, Slot< Args... > slot)

Protected Member Functions
Rect2Di32	contentRect (const Rect2Di32 &available) const
	Returns the content rect after subtracting margins.

Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.

virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.

virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.

Protected Attributes
List< TuiWidget * >	_widgets

List< TuiLayout * >	_layouts

Additional Inherited Members
Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.

Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.

template<typename... Args>
static void	connect (Signal< Args... > signal, Slot< Args... > slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object

Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)

Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"

static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)

Detailed Description

Abstract base class for TUI layout managers.

A layout positions child widgets within the available rectangle. Layouts can be nested by adding sub-layouts.

Member Function Documentation

◆ addLayout()

virtual void TuiLayout::addLayout ( TuiLayout * layout )

virtual

Adds a nested layout.

Reimplemented in TuiBoxLayout.

◆ addWidget()

virtual void TuiLayout::addWidget ( TuiWidget * widget )

virtual

Adds a widget to this layout.

Reimplemented in TuiBoxLayout.

◆ calculateLayout()

virtual void TuiLayout::calculateLayout ( const Rect2Di32 & available )

pure virtual

Calculates and applies the layout to the given rectangle.

Parameters

available The available rectangle.

Implemented in TuiBoxLayout, and TuiGridLayout.

◆ sizeHint()

virtual Size2Di32 TuiLayout::sizeHint ( ) const

virtual

Returns the preferred size for this layout based on its children.

Reimplemented in TuiBoxLayout.

The documentation for this class was generated from the following file:

include/promeki/tui/layout.h
