TuiBoxLayout Class Reference

Layout that arranges widgets in a horizontal or vertical line. More...

#include <layout.h>

Inheritance diagram for TuiBoxLayout:

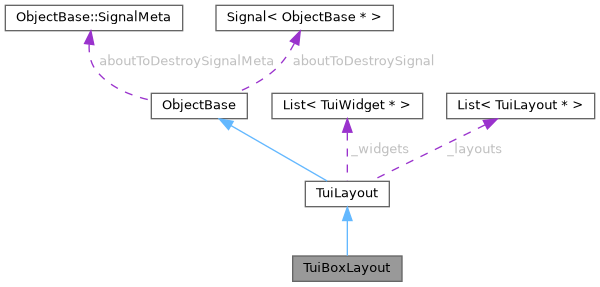

Collaboration diagram for TuiBoxLayout:

Public Member Functions
	TuiBoxLayout (TuiBoxDirection direction, ObjectBase *parent=nullptr)
	Constructs a TuiBoxLayout.
TuiBoxDirection	direction () const
	Returns the direction.
void	addWidget (TuiWidget *widget) override
	Adds a widget to the ordered item list.
void	addLayout (TuiLayout *layout) override
	Adds a sub-layout to the ordered item list.
void	addStretch (int factor=1)
	Adds a stretch item with the given factor.
void	setStretch (int index, int factor)
	Sets the stretch factor for the item at the given index.
void	calculateLayout (const Rect2Di32 &available) override
	Calculates and applies the layout.
Size2Di32	sizeHint () const override
	Returns the preferred size based on children and direction.
Public Member Functions inherited from TuiLayout
	TuiLayout (ObjectBase *parent=nullptr)
void	removeWidget (TuiWidget *widget)
	Removes a widget from this layout.
void	setMargins (int top, int right, int bottom, int left)
	Sets the margins (top, right, bottom, left).
void	setMargins (int margin)
	Sets uniform margins.
void	setSpacing (int spacing)
	Sets the spacing between items.
int	spacing () const
	Returns the spacing.
void	margins (int &top, int &right, int &bottom, int &left) const
	Returns the margins.
const List< TuiWidget * > &	widgets () const
	Returns the list of managed widgets.
const List< TuiLayout * > &	layouts () const
	Returns the list of sub-layouts.
Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.
virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.
ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.
void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.
const ObjectBaseList &	childList () const
	Returns a list of children of this object.
template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.
EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.
void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.
int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.
void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().
template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > *signal, Slot< Args... > *slot)

Additional Inherited Members
Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.
Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.
template<typename... Args>
static void	connect (Signal< Args... > *signal, Slot< Args... > *slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object
Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)
Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"
static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)
Protected Member Functions inherited from TuiLayout
Rect2Di32	contentRect (const Rect2Di32 &available) const
	Returns the content rect after subtracting margins.
Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.
virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.
virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.
Protected Attributes inherited from TuiLayout
List< TuiWidget * >	_widgets
List< TuiLayout * >	_layouts

Detailed Description

Layout that arranges widgets in a horizontal or vertical line.

Items are added in order via addWidget(), addLayout(), or addStretch(). All three are placed into a single ordered list so that sub-layouts participate in size negotiation and positioning just like widgets.

Constructor & Destructor Documentation

TuiBoxLayout()

TuiBoxLayout::TuiBoxLayout	(	TuiBoxDirection	direction,
		ObjectBase *	parent = nullptr
	)

Constructs a TuiBoxLayout.

Parameters

direction	The layout direction.
parent	Optional parent.

Member Function Documentation

addLayout()

void TuiBoxLayout::addLayout ( TuiLayout *  layout )

overridevirtual

Adds a sub-layout to the ordered item list.

Reimplemented from TuiLayout.

addWidget()

void TuiBoxLayout::addWidget ( TuiWidget *  widget )

overridevirtual

Adds a widget to the ordered item list.

Reimplemented from TuiLayout.

calculateLayout()

void TuiBoxLayout::calculateLayout ( const Rect2Di32 &  available )

overridevirtual

Calculates and applies the layout.

Implements TuiLayout.

sizeHint()

Size2Di32 TuiBoxLayout::sizeHint ( ) const

overridevirtual

Returns the preferred size based on children and direction.

Reimplemented from TuiLayout.

---

The documentation for this class was generated from the following file:

• include/promeki/tui/layout.h
