Owns a MediaGraph and orchestrates pipeline processing. More...

#include <mediapipeline.h>

Inheritance diagram for MediaPipeline:

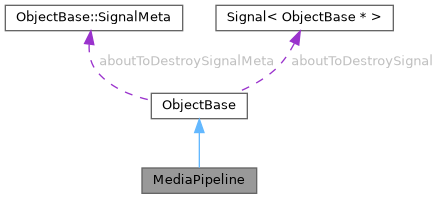

Collaboration diagram for MediaPipeline:

[legend]

Public Types
enum	State { Stopped , Starting , Running , Paused , Stopping , ErrorState }
	Pipeline lifecycle state. More...

Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.

Public Member Functions
	MediaPipeline (ObjectBase *parent=nullptr)
	Constructs a MediaPipeline.

virtual	~MediaPipeline ()
	Destructor. Stops the pipeline if running.

MediaGraph *	graph ()
	Returns the managed graph.

const MediaGraph *	graph () const
	Returns the managed graph (const).

ThreadPool *	threadPool ()
	Returns the thread pool used for processing.

void	setThreadPool (ThreadPool *pool)
	Sets an external thread pool to use instead of the internal one.

Error	start ()
	Validates the graph, configures all nodes, and starts processing.

Error	stop ()
	Stops all nodes and waits for processing to complete.

Error	pause ()
	Pauses processing.

Error	resume ()
	Resumes processing from a paused state.

State	state () const
	Returns the current pipeline state.

	PROMEKI_SIGNAL (stateChanged, State)
	Emitted when the pipeline state changes.

	PROMEKI_SIGNAL (errorOccurred, Error)
	Emitted when an error occurs in the pipeline.

	PROMEKI_SIGNAL (started)
	Emitted when the pipeline has started.

	PROMEKI_SIGNAL (stopped)
	Emitted when the pipeline has stopped.

Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.

virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.

ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.

void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.

const ObjectBaseList &	childList () const
	Returns a list of children of this object.

template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.

EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.

void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.

int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.

void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().

template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > signal, Slot< Args... > slot)

Additional Inherited Members
Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.

template<typename... Args>
static void	connect (Signal< Args... > signal, Slot< Args... > slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object

Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)

Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"

static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)

Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.

virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.

virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.

Detailed Description

Owns a MediaGraph and orchestrates pipeline processing.

MediaPipeline manages the execution of a media processing graph. It validates the graph, configures all nodes, and schedules processing using a thread pool. The processing model is back-pressure driven: source nodes run continuously gated by downstream queue depth, and only timing-aware sink nodes manage real-time pacing.

Member Enumeration Documentation

◆ State

enum MediaPipeline::State

Pipeline lifecycle state.

Enumerator
Stopped	Pipeline is not running.
Starting	Pipeline is starting up (configuring nodes).
Running	Pipeline is actively processing.
Paused	Pipeline is paused.
Stopping	Pipeline is shutting down.
ErrorState	An error has occurred.

Constructor & Destructor Documentation

◆ MediaPipeline()

MediaPipeline::MediaPipeline ( ObjectBase * parent = nullptr )

Constructs a MediaPipeline.

Parameters

parent Optional parent object.

Member Function Documentation

◆ pause()

Error MediaPipeline::pause ( )

Pauses processing.

Returns: Error::Ok on success.

◆ resume()

Error MediaPipeline::resume ( )

Resumes processing from a paused state.

Returns: Error::Ok on success.

◆ setThreadPool()

void MediaPipeline::setThreadPool ( ThreadPool * pool )

inline

Sets an external thread pool to use instead of the internal one.

Parameters

pool	The thread pool. Ownership is not transferred.

◆ start()

Error MediaPipeline::start ( )

Validates the graph, configures all nodes, and starts processing.

Returns: Error::Ok on success, or an error describing the failure.

◆ stop()

Error MediaPipeline::stop ( )

Stops all nodes and waits for processing to complete.

Returns: Error::Ok on success.

The documentation for this class was generated from the following file:

include/promeki/proav/mediapipeline.h
