TcpSocket Class Reference

Stream-oriented TCP socket. More...

#include <tcpsocket.h>

Inheritance diagram for TcpSocket:

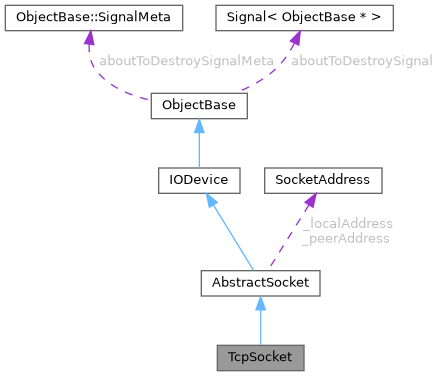

Collaboration diagram for TcpSocket:

Public Member Functions
	TcpSocket (ObjectBase *parent=nullptr)
	Constructs a TcpSocket.
	~TcpSocket () override
	Destructor.
Error	open (OpenMode mode) override
	Opens the socket.
Error	openIpv6 (OpenMode mode)
	Opens the socket for IPv6 operation.
Error	close () override
	Closes the socket.
bool	isOpen () const override
	Returns true if the socket is open.
int64_t	read (void *data, int64_t maxSize) override
	Reads data from the connected socket.
int64_t	write (const void *data, int64_t maxSize) override
	Writes data to the connected socket.
int64_t	bytesAvailable () const override
	Returns the number of bytes available for reading.
Error	setNoDelay (bool enable)
	Enables or disables TCP_NODELAY (Nagle algorithm).
Error	setKeepAlive (bool enable)
	Enables or disables SO_KEEPALIVE.
Public Member Functions inherited from AbstractSocket
	AbstractSocket (SocketType type, ObjectBase *parent=nullptr)
	Constructs an AbstractSocket.
virtual	~AbstractSocket ()
	Destructor. Closes the socket if open.
SocketType	socketType () const
	Returns the socket type.
SocketState	state () const
	Returns the current socket state.
Error	bind (const SocketAddress &address)
	Binds the socket to a local address.
Error	connectToHost (const SocketAddress &address)
	Initiates a connection to a remote host.
void	disconnectFromHost ()
	Disconnects from the remote host.
SocketAddress	localAddress () const
	Returns the local address the socket is bound to.
SocketAddress	peerAddress () const
	Returns the address of the connected peer.
Error	waitForConnected (unsigned int timeoutMs=0)
	Blocks until the socket is connected or timeout.
int	socketDescriptor () const
	Returns the raw socket file descriptor.
void	setSocketDescriptor (int fd)
	Adopts an existing file descriptor as the socket.
Error	setSocketOption (int level, int option, int value)
	Sets a raw socket option via setsockopt().
Result< int >	socketOption (int level, int option) const
	Gets a raw socket option via getsockopt().
bool	isSequential () const override
	Returns true — sockets are sequential (non-seekable).
	PROMEKI_SIGNAL (connected)
	Emitted when a connection is established.
	PROMEKI_SIGNAL (disconnected)
	Emitted when the socket is disconnected.
	PROMEKI_SIGNAL (stateChanged, SocketState)
	Emitted when the socket state changes.
Public Member Functions inherited from IODevice
	IODevice (ObjectBase *parent=nullptr)
	Constructs an IODevice.
virtual	~IODevice ()
	Destructor.
virtual void	flush ()
	Flushes any buffered output data to the underlying device.
virtual bool	waitForReadyRead (unsigned int timeoutMs=0)
	Waits until data is available for reading or timeout.
virtual bool	waitForBytesWritten (unsigned int timeoutMs=0)
	Waits until all pending data has been written or timeout.
virtual Error	seek (int64_t pos)
	Seeks to the given byte offset from the beginning.
virtual int64_t	pos () const
	Returns the current read/write position.
virtual Result< int64_t >	size () const
	Returns the total size of the device in bytes.
virtual bool	atEnd () const
	Returns true if the current position is at the end.
OpenMode	openMode () const
	Returns the current open mode.
bool	isReadable () const
	Returns true if the device is readable.
bool	isWritable () const
	Returns true if the device is writable.
Error	error () const
	Returns the current error state.
void	clearError ()
	Clears the error state to Ok.
	PROMEKI_SIGNAL (readyRead)
	Emitted when data is available for reading.
	PROMEKI_SIGNAL (bytesWritten, int64_t)
	Emitted when bytes have been written.
	PROMEKI_SIGNAL (errorOccurred, Error)
	Emitted when an error occurs.
	PROMEKI_SIGNAL (aboutToClose)
	Emitted just before the device is closed.
Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.
virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.
ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.
void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.
const ObjectBaseList &	childList () const
	Returns a list of children of this object.
template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.
EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.
void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.
int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.
void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().
template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > *signal, Slot< Args... > *slot)

Additional Inherited Members
Public Types inherited from AbstractSocket
enum	SocketType { TcpSocketType , UdpSocketType , RawSocketType }
	The type of socket. More...
enum	SocketState {   Unconnected , Connecting , Connected , Bound ,   Closing , Listening }
	The current state of the socket. More...
Public Types inherited from IODevice
enum	OpenMode {   NotOpen = 0x00 , ReadOnly = 0x01 , WriteOnly = 0x02 , ReadWrite = ReadOnly | WriteOnly ,   Append = 0x04 | WriteOnly }
	Mode flags controlling how a device is opened. More...
Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.
Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.
template<typename... Args>
static void	connect (Signal< Args... > *signal, Slot< Args... > *slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object
Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)
Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"
static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)
Protected Member Functions inherited from AbstractSocket
Error	createSocket (int domain, int type, int protocol=0)
	Creates the underlying socket descriptor.
void	closeSocket ()
	Closes the socket descriptor.
Error	setNonBlocking (bool enable)
	Sets the socket to non-blocking mode.
void	updateLocalAddress ()
	Updates the local address from the socket descriptor.
void	setState (SocketState state)
	Sets the socket state and emits stateChanged.
Protected Member Functions inherited from IODevice
void	setOpenMode (OpenMode mode)
	Sets the open mode.
void	setError (const Error &err)
	Sets the error state and emits errorOccurred.
Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.
virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.
virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.
Protected Attributes inherited from AbstractSocket
int	_fd = -1
	Socket file descriptor.
SocketState	_state = Unconnected
	Current socket state.
SocketType	_type
	Socket type.
SocketAddress	_localAddress
	Local bound address.
SocketAddress	_peerAddress
	Connected peer address.

Detailed Description

Stream-oriented TCP socket.

TcpSocket provides reliable, ordered, connection-oriented communication over TCP. Uses the IODevice read()/write() interface for data transfer after a connection is established.

This class must only be used from the thread that created it (or moved to via moveToThread()).

Example

TcpSocket sock;
sock.open(IODevice::ReadWrite);
sock.connectToHost(SocketAddress(Ipv4Address(127, 0, 0, 1), 8080));
sock.write("GET / HTTP/1.0\r\n\r\n", 18);
char buf[4096];
int64_t n = sock.read(buf, sizeof(buf));

Constructor & Destructor Documentation

TcpSocket()

TcpSocket::TcpSocket

(

ObjectBase *

parent = nullptr

)

Constructs a TcpSocket.

Parameters

parent

The parent object, or nullptr.

Member Function Documentation

bytesAvailable()

int64_t TcpSocket::bytesAvailable ( ) const

overridevirtual

Returns the number of bytes available for reading.

Returns

Bytes available, or 0 if unknown.

Reimplemented from IODevice.

close()

Error TcpSocket::close ( )

overridevirtual

Closes the socket.

Returns

Error::Ok on success, or an error on failure.

Implements IODevice.

isOpen()

bool TcpSocket::isOpen ( ) const

inlineoverridevirtual

Returns true if the socket is open.

Implements IODevice.

open()

Error TcpSocket::open ( OpenMode  mode )

overridevirtual

Opens the socket.

Creates an AF_INET SOCK_STREAM socket. Use openIpv6() if IPv6 is needed.

Parameters

mode	The open mode (typically ReadWrite).

Returns

Error::Ok on success, or an error on failure.

Implements IODevice.

openIpv6()

Error TcpSocket::openIpv6

(

OpenMode

mode

)

Opens the socket for IPv6 operation.

Creates an AF_INET6 SOCK_STREAM socket. By default, IPV6_V6ONLY is disabled so IPv4-mapped addresses work.

Parameters

mode	The open mode.

Returns

Error::Ok on success, or an error on failure.

read()

int64_t TcpSocket::read ( void *  data, int64_t  maxSize  )

overridevirtual

Reads data from the connected socket.

Parameters

data	Buffer to read into.
maxSize	Maximum bytes to read.

Returns

Bytes read, 0 on peer disconnect, or -1 on error.

Implements IODevice.

setKeepAlive()

Error TcpSocket::setKeepAlive

(

bool

enable

)

Enables or disables SO_KEEPALIVE.

Parameters

enable

True to enable keepalive probes.

Returns

Error::Ok on success, or an error on failure.

setNoDelay()

Error TcpSocket::setNoDelay

(

bool

enable

)

Enables or disables TCP_NODELAY (Nagle algorithm).

Parameters

enable

True to disable Nagle (low latency), false to enable.

Returns

Error::Ok on success, or an error on failure.

write()

int64_t TcpSocket::write ( const void *  data, int64_t  maxSize  )

overridevirtual

Writes data to the connected socket.

Parameters

data	Data to send.
maxSize	Bytes to send.

Returns

Bytes sent, or -1 on error.

Implements IODevice.

---

The documentation for this class was generated from the following file:

• include/promeki/network/tcpsocket.h
