Source node that generates video and audio test patterns. More...

#include <testpatternnode.h>

Inheritance diagram for TestPatternNode:

[legend]

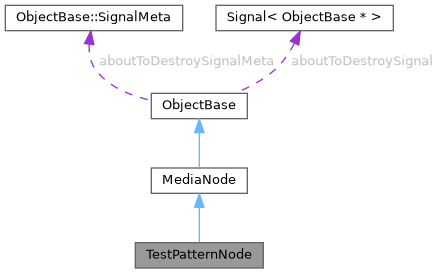

Collaboration diagram for TestPatternNode:

[legend]

Public Types
enum	Pattern { ColorBars , ColorBars75 , Ramp , Grid , Crosshatch , Checkerboard , SolidColor , White , Black , Noise , ZonePlate }
	Video test pattern type. More...

enum	AudioMode { Tone , Silence , LTC }
	Audio generation mode. More...

Public Types inherited from MediaNode
enum	State { Idle , Configured , Running , ErrorState }
	Node lifecycle state. More...

enum	ThreadingPolicy { UseGraphPool , DedicatedThread , CustomPool }
	Threading policy for this node. More...

Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.

Public Member Functions
	TestPatternNode (ObjectBase *parent=nullptr)
	Constructs a TestPatternNode.

virtual	~TestPatternNode ()
	Destructor.

void	setPattern (Pattern p)
	Sets the video test pattern.

Pattern	pattern () const
	Returns the current pattern.

void	setVideoDesc (const VideoDesc &desc)
	Sets the video description (frame rate, resolution, pixel format).

const VideoDesc &	videoDesc () const
	Returns the video description.

void	setSolidColor (uint16_t r, uint16_t g, uint16_t b)
	Sets the solid color for SolidColor pattern.

void	setMotion (double speed)
	Sets the pattern motion speed.

double	motion () const
	Returns the motion speed.

TimecodeGenerator &	timecodeGenerator ()
	Returns a mutable reference to the internal timecode generator.

const TimecodeGenerator &	timecodeGenerator () const
	Returns a const reference to the internal timecode generator.

void	setStartTimecode (const Timecode &tc)
	Sets the starting timecode.

void	setDropFrame (bool df)
	Enables or disables drop-frame timecode.

Timecode	currentTimecode () const
	Returns the current timecode value.

uint64_t	frameCount () const
	Returns the total number of frames generated.

void	setAudioDesc (const AudioDesc &desc)
	Sets the audio description.

const AudioDesc &	audioDesc () const
	Returns the audio description.

void	setAudioEnabled (bool enable)
	Enables or disables audio generation.

bool	audioEnabled () const
	Returns true if audio generation is enabled.

void	setAudioMode (AudioMode mode)
	Sets the audio generation mode.

AudioMode	audioMode () const
	Returns the current audio mode.

void	setChannelConfig (size_t chan, AudioGen::Config config)
	Sets per-channel audio configuration (Tone mode).

void	setToneFrequency (double hz)
	Sets all channels to a sine tone at the given frequency.

void	setToneAmplitude (double amplitude)
	Sets the amplitude for all tone channels.

void	setLtcLevel (float level)
	Sets the LTC output amplitude.

void	setLtcChannel (int chan)
	Sets which channel carries LTC.

Error	configure () override
	Validates ports and allocates resources.

Error	start () override
	Begins processing.

void	process () override
	Processes one cycle of data.

void	stop () override
	Stops processing.

Map< String, Variant >	extendedStats () const override
	Returns additional node-specific statistics.

Public Member Functions inherited from MediaNode
	MediaNode (ObjectBase *parent=nullptr)
	Constructs a MediaNode.

virtual	~MediaNode ()
	Virtual destructor.

State	state () const
	Returns the current state.

const String &	name () const
	Returns the node name.

void	setName (const String &name)
	Sets the node name.

const MediaPort::PtrList &	inputPorts () const
	Returns the list of input ports.

const MediaPort::PtrList &	outputPorts () const
	Returns the list of output ports.

MediaPort::Ptr	inputPort (int index) const
	Returns the input port at the given index.

MediaPort::Ptr	outputPort (int index) const
	Returns the output port at the given index.

MediaPort::Ptr	inputPort (const String &name) const
	Returns the input port with the given name.

MediaPort::Ptr	outputPort (const String &name) const
	Returns the output port with the given name.

int	inputPortCount () const
	Returns the number of input ports.

int	outputPortCount () const
	Returns the number of output ports.

void	setThreadingPolicy (ThreadingPolicy policy)
	Sets the threading policy.

void	setThreadingPolicy (ThreadPool *pool)
	Sets a custom thread pool and switches policy to CustomPool.

ThreadingPolicy	threadingPolicy () const
	Returns the current threading policy.

ThreadPool *	customThreadPool () const
	Returns the custom thread pool, or nullptr if not using CustomPool.

void	setIdealQueueSize (int size)
	Sets the ideal input queue depth.

int	idealQueueSize () const
	Returns the ideal input queue size.

int	queuedFrameCount () const
	Returns the current input queue depth.

virtual void	starvation ()
	Called when the node's input queue is empty and data is needed.

virtual Map< String, Variant >	properties () const
	Returns all configurable properties as key-value pairs.

virtual Error	setProperty (const String &name, const Variant &value)
	Sets a property by name.

Variant	property (const String &name) const
	Gets a single property value by name.

NodeStats	stats () const
	Returns a snapshot of the node's performance statistics.

void	resetStats ()
	Resets all statistics counters to zero.

	PROMEKI_SIGNAL (stateChanged, State)
	Emitted when the node's state changes.

	PROMEKI_SIGNAL (errorOccurred, Error)
	Emitted when an error occurs.

	PROMEKI_SIGNAL (messageEmitted, NodeMessage)
	Emitted when the node produces a message.

Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.

virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.

ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.

void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.

const ObjectBaseList &	childList () const
	Returns a list of children of this object.

template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.

EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.

void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.

int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.

void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().

template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > signal, Slot< Args... > slot)

Additional Inherited Members
Static Public Member Functions inherited from MediaNode
static void	registerNodeType (const String &typeName, std::function< MediaNode *()> factory)
	Registers a node type for runtime creation.

static MediaNode *	createNode (const String &typeName)
	Creates a node by registered type name.

static List< String >	registeredNodeTypes ()
	Returns the list of all registered node type names.

Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.

template<typename... Args>
static void	connect (Signal< Args... > signal, Slot< Args... > slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object

Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)

Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"

static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)

Protected Member Functions inherited from MediaNode
void	enqueueInput (Frame::Ptr frame)
	Enqueues a frame into this node's input queue.

void	recordProcessTiming (double duration)
	Records timing for a process() call.

void	recordStarvation ()
	Records a starvation event.

void	addInputPort (MediaPort::Ptr port)
	Adds an input port to this node.

void	addOutputPort (MediaPort::Ptr port)
	Adds an output port to this node.

void	setState (State state)
	Sets the node state and emits stateChanged.

Frame::Ptr	dequeueInput ()
	Dequeues a frame from this node's input queue.

void	deliverOutput (int portIndex, Frame::Ptr frame)
	Delivers a frame to all outgoing links on the given output port.

void	deliverOutput (Frame::Ptr frame)
	Delivers a frame to all outgoing links on all output ports.

void	emitMessage (Severity severity, const String &message, uint64_t frameNumber=0)
	Emits a message with the given severity and text.

void	emitWarning (const String &message)
	Emits a Warning-severity message.

void	emitError (const String &message)
	Emits an Error-severity message.

Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.

virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.

virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.

Detailed Description

Source node that generates video and audio test patterns.

Produces complete Frame objects with synchronized video, audio, and timecode metadata on each process cycle. The video pattern, audio mode, and timecode are all configurable.

This is a source node: no inputs, one Frame output.

Example: TestPatternNode *src = new TestPatternNode();

src->setPattern(TestPatternNode::ColorBars);

src->setVideoDesc(videoDesc);

src->setAudioDesc(audioDesc);

src->setStartTimecode(Timecode(Timecode::NDF24, 1, 0, 0, 0));

List
Dynamic array container wrapping std::vector.
Definition list.h:40

TestPatternNode
Source node that generates video and audio test patterns.
Definition testpatternnode.h:40

TestPatternNode::audioDesc
const AudioDesc & audioDesc() const
Returns the audio description.
Definition testpatternnode.h:152

TestPatternNode::ColorBars
@ ColorBars
SMPTE 100% color bars.
Definition testpatternnode.h:45

TestPatternNode::videoDesc
const VideoDesc & videoDesc() const
Returns the video description.
Definition testpatternnode.h:92

Timecode
Class for holding and manipulating timecode.
Definition timecode.h:45

Timecode::NDF24
@ NDF24
24 fps non-drop-frame (maps to VTC_FORMAT_24)
Definition timecode.h:53

Member Enumeration Documentation

◆ AudioMode

enum TestPatternNode::AudioMode

Audio generation mode.

Enumerator
Tone	Sine tone (configurable frequency).
Silence	Silence.
LTC	LTC timecode audio.

◆ Pattern

enum TestPatternNode::Pattern

Video test pattern type.

Enumerator
ColorBars	SMPTE 100% color bars.
ColorBars75	SMPTE 75% color bars.
Ramp	Luminance gradient ramp.
Grid	White grid lines on black.
Crosshatch	Diagonal crosshatch lines.
Checkerboard	Alternating black/white squares.
SolidColor	Solid fill with configured color.
White	Solid white.
Black	Solid black.
Noise	Random pixel noise.
ZonePlate	Circular zone plate.

Constructor & Destructor Documentation

◆ TestPatternNode()

TestPatternNode::TestPatternNode ( ObjectBase * parent = nullptr )

Constructs a TestPatternNode.

Parameters

parent Optional parent object.

Member Function Documentation

◆ configure()

Error TestPatternNode::configure ( )

overridevirtual

Validates ports and allocates resources.

Transitions the node from Idle to Configured on success.

Returns: Error::Ok on success, or an error code.

Reimplemented from MediaNode.

◆ extendedStats()

Map< String, Variant > TestPatternNode::extendedStats ( ) const

overridevirtual

Returns additional node-specific statistics.

Override in concrete nodes to expose custom statistics (e.g., "packetsSent", "bytesSent" for RTP nodes).

Returns: A map of stat names to Variant values.

Reimplemented from MediaNode.

◆ process()

void TestPatternNode::process ( )

overridevirtual

Processes one cycle of data.

Pure virtual — must be implemented by concrete node subclasses.

Implements MediaNode.

◆ setAudioDesc()

void TestPatternNode::setAudioDesc ( const AudioDesc & desc )

inline

Sets the audio description.

Parameters

desc	The audio format description.

◆ setAudioEnabled()

void TestPatternNode::setAudioEnabled ( bool enable )

inline

Enables or disables audio generation.

Parameters

enable true to enable audio output.

◆ setAudioMode()

void TestPatternNode::setAudioMode ( AudioMode mode )

inline

Sets the audio generation mode.

Parameters

mode	Tone, Silence, or LTC.

◆ setChannelConfig()

void TestPatternNode::setChannelConfig	(	size_t	chan,
		AudioGen::Config	config
	)

Sets per-channel audio configuration (Tone mode).

Parameters

chan	Channel index.
config	The audio generator config for that channel.

◆ setDropFrame()

void TestPatternNode::setDropFrame ( bool df )

inline

Enables or disables drop-frame timecode.

Parameters

df	true for drop-frame (only effective at 30000/1001 fps).

◆ setLtcChannel()

void TestPatternNode::setLtcChannel ( int chan )

inline

Sets which channel carries LTC.

Parameters

chan	Channel index, or -1 for all channels.

◆ setLtcLevel()

void TestPatternNode::setLtcLevel ( float level )

inline

Sets the LTC output amplitude.

Parameters

level Level (0.0 -1.0).

◆ setMotion()

void TestPatternNode::setMotion ( double speed )

inline

Sets the pattern motion speed.

Parameters

speed 0.0 = static, positive = forward, negative = reverse. 1.0 = one pattern-width per second.

◆ setPattern()

void TestPatternNode::setPattern ( Pattern p )

inline

Sets the video test pattern.

Parameters

p	The pattern to generate.

◆ setSolidColor()

void TestPatternNode::setSolidColor	(	uint16_t	r,
		uint16_t	g,
		uint16_t	b
	)

inline

Sets the solid color for SolidColor pattern.

Parameters

r	Red component (0-65535).
g	Green component (0-65535).
b	Blue component (0-65535).

◆ setStartTimecode()

void TestPatternNode::setStartTimecode ( const Timecode & tc )

inline

Sets the starting timecode.

Parameters

tc	The starting timecode value.

◆ setToneAmplitude()

void TestPatternNode::setToneAmplitude ( double amplitude )

inline

Sets the amplitude for all tone channels.

Parameters

amplitude Amplitude (0.0 -1.0).

◆ setToneFrequency()

void TestPatternNode::setToneFrequency ( double hz )

inline

Sets all channels to a sine tone at the given frequency.

Parameters

hz	Frequency in Hz.

◆ setVideoDesc()

void TestPatternNode::setVideoDesc ( const VideoDesc & desc )

inline

Sets the video description (frame rate, resolution, pixel format).

Parameters

desc	The video description.

◆ start()

Error TestPatternNode::start ( )

overridevirtual

Begins processing.

Transitions the node from Configured to Running on success.

Returns: Error::Ok on success, or an error code.

Reimplemented from MediaNode.

◆ stop()

void TestPatternNode::stop ( )

overridevirtual

Stops processing.

Transitions the node from Running to Idle.

Reimplemented from MediaNode.

The documentation for this class was generated from the following file:

include/promeki/proav/testpatternnode.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ AudioMode

◆ Pattern

Constructor & Destructor Documentation

◆ TestPatternNode()

Member Function Documentation

◆ configure()

◆ extendedStats()

◆ process()

◆ setAudioDesc()

◆ setAudioEnabled()

◆ setAudioMode()

◆ setChannelConfig()

◆ setDropFrame()

◆ setLtcChannel()

◆ setLtcLevel()

◆ setMotion()

◆ setPattern()

◆ setSolidColor()

◆ setStartTimecode()

◆ setToneAmplitude()

◆ setToneFrequency()

◆ setVideoDesc()

◆ start()

◆ stop()
