Burns timecode text into video frames using FontPainter. More...

#include <timecodeoverlaynode.h>

Inheritance diagram for TimecodeOverlayNode:

[legend]

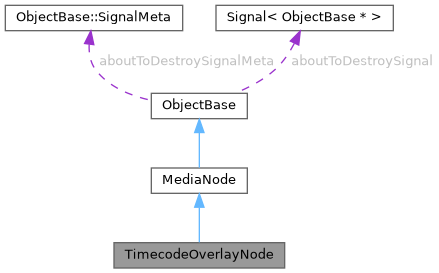

Collaboration diagram for TimecodeOverlayNode:

[legend]

Public Types
enum	Position { TopLeft , TopCenter , TopRight , BottomLeft , BottomCenter , BottomRight , Custom }
	Named position presets for text placement. More...

Public Types inherited from MediaNode
enum	State { Idle , Configured , Running , ErrorState }
	Node lifecycle state. More...

enum	ThreadingPolicy { UseGraphPool , DedicatedThread , CustomPool }
	Threading policy for this node. More...

Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.

Public Member Functions
	TimecodeOverlayNode (ObjectBase *parent=nullptr)
	Constructs a TimecodeOverlayNode.

virtual	~TimecodeOverlayNode ()=default
	Destructor.

void	setFontPath (const FilePath &path)
	Sets the path to the TrueType font file.

const FilePath &	fontPath () const
	Returns the font path.

void	setFontSize (int points)
	Sets the font size in points.

int	fontSize () const
	Returns the font size in points.

void	setPosition (Position pos)
	Sets the text position using a named preset.

void	setPosition (int x, int y)
	Sets a custom text position.

Position	position () const
	Returns the current position preset.

void	setTextColor (uint16_t r, uint16_t g, uint16_t b)
	Sets the text color.

void	setDrawBackground (bool enable)
	Enables or disables drawing a dark background behind the text.

bool	drawBackground () const
	Returns true if background drawing is enabled.

void	setCustomText (const String &text)
	Sets additional custom text to render below the timecode.

const String &	customText () const
	Returns the custom text.

Error	configure () override
	Validates the font path and initializes the FontPainter.

void	process () override
	Reads timecode from the input image's metadata and renders it as text.

Public Member Functions inherited from MediaNode
	MediaNode (ObjectBase *parent=nullptr)
	Constructs a MediaNode.

virtual	~MediaNode ()
	Virtual destructor.

State	state () const
	Returns the current state.

const String &	name () const
	Returns the node name.

void	setName (const String &name)
	Sets the node name.

const MediaPort::PtrList &	inputPorts () const
	Returns the list of input ports.

const MediaPort::PtrList &	outputPorts () const
	Returns the list of output ports.

MediaPort::Ptr	inputPort (int index) const
	Returns the input port at the given index.

MediaPort::Ptr	outputPort (int index) const
	Returns the output port at the given index.

MediaPort::Ptr	inputPort (const String &name) const
	Returns the input port with the given name.

MediaPort::Ptr	outputPort (const String &name) const
	Returns the output port with the given name.

int	inputPortCount () const
	Returns the number of input ports.

int	outputPortCount () const
	Returns the number of output ports.

void	setThreadingPolicy (ThreadingPolicy policy)
	Sets the threading policy.

void	setThreadingPolicy (ThreadPool *pool)
	Sets a custom thread pool and switches policy to CustomPool.

ThreadingPolicy	threadingPolicy () const
	Returns the current threading policy.

ThreadPool *	customThreadPool () const
	Returns the custom thread pool, or nullptr if not using CustomPool.

void	setIdealQueueSize (int size)
	Sets the ideal input queue depth.

int	idealQueueSize () const
	Returns the ideal input queue size.

int	queuedFrameCount () const
	Returns the current input queue depth.

virtual Error	start ()
	Begins processing.

virtual void	stop ()
	Stops processing.

virtual void	starvation ()
	Called when the node's input queue is empty and data is needed.

virtual Map< String, Variant >	properties () const
	Returns all configurable properties as key-value pairs.

virtual Error	setProperty (const String &name, const Variant &value)
	Sets a property by name.

Variant	property (const String &name) const
	Gets a single property value by name.

NodeStats	stats () const
	Returns a snapshot of the node's performance statistics.

void	resetStats ()
	Resets all statistics counters to zero.

virtual Map< String, Variant >	extendedStats () const
	Returns additional node-specific statistics.

	PROMEKI_SIGNAL (stateChanged, State)
	Emitted when the node's state changes.

	PROMEKI_SIGNAL (errorOccurred, Error)
	Emitted when an error occurs.

	PROMEKI_SIGNAL (messageEmitted, NodeMessage)
	Emitted when the node produces a message.

Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.

virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.

ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.

void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.

const ObjectBaseList &	childList () const
	Returns a list of children of this object.

template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.

EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.

void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.

int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.

void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().

template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > signal, Slot< Args... > slot)

Additional Inherited Members
Static Public Member Functions inherited from MediaNode
static void	registerNodeType (const String &typeName, std::function< MediaNode *()> factory)
	Registers a node type for runtime creation.

static MediaNode *	createNode (const String &typeName)
	Creates a node by registered type name.

static List< String >	registeredNodeTypes ()
	Returns the list of all registered node type names.

Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.

template<typename... Args>
static void	connect (Signal< Args... > signal, Slot< Args... > slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object

Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)

Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"

static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)

Protected Member Functions inherited from MediaNode
void	enqueueInput (Frame::Ptr frame)
	Enqueues a frame into this node's input queue.

void	recordProcessTiming (double duration)
	Records timing for a process() call.

void	recordStarvation ()
	Records a starvation event.

void	addInputPort (MediaPort::Ptr port)
	Adds an input port to this node.

void	addOutputPort (MediaPort::Ptr port)
	Adds an output port to this node.

void	setState (State state)
	Sets the node state and emits stateChanged.

Frame::Ptr	dequeueInput ()
	Dequeues a frame from this node's input queue.

void	deliverOutput (int portIndex, Frame::Ptr frame)
	Delivers a frame to all outgoing links on the given output port.

void	deliverOutput (Frame::Ptr frame)
	Delivers a frame to all outgoing links on all output ports.

void	emitMessage (Severity severity, const String &message, uint64_t frameNumber=0)
	Emits a message with the given severity and text.

void	emitWarning (const String &message)
	Emits a Warning-severity message.

void	emitError (const String &message)
	Emits an Error-severity message.

Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.

virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.

virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.

Detailed Description

Burns timecode text into video frames using FontPainter.

Processing node with one Image input and one Image output. Reads timecode from the Image's own Metadata and renders it as text onto the image buffer. Optionally renders additional custom text.

Requires a TrueType font file to be set via setFontPath() before configure() is called.

Example: TimecodeOverlayNode *overlay = new TimecodeOverlayNode();

overlay->setFontPath("/usr/share/fonts/truetype/dejavu/DejaVuSansMono.ttf");

overlay->setFontSize(48);

overlay->setPosition(TimecodeOverlayNode::BottomCenter);

List
Dynamic array container wrapping std::vector.
Definition list.h:40

TimecodeOverlayNode
Burns timecode text into video frames using FontPainter.
Definition timecodeoverlaynode.h:37

TimecodeOverlayNode::BottomCenter
@ BottomCenter
Bottom center.
Definition timecodeoverlaynode.h:46

Member Enumeration Documentation

◆ Position

enum TimecodeOverlayNode::Position

Named position presets for text placement.

Enumerator
TopLeft	Top-left corner.
TopCenter	Top center.
TopRight	Top-right corner.
BottomLeft	Bottom-left corner.
BottomCenter	Bottom center.
BottomRight	Bottom-right corner.
Custom	Custom x/y coordinates.

Constructor & Destructor Documentation

◆ TimecodeOverlayNode()

TimecodeOverlayNode::TimecodeOverlayNode ( ObjectBase * parent = nullptr )

Constructs a TimecodeOverlayNode.

Parameters

parent Optional parent object.

Member Function Documentation

◆ configure()

Error TimecodeOverlayNode::configure ( )

overridevirtual

Validates the font path and initializes the FontPainter.

Transitions to Configured on success. Fails if the font path is not set or does not exist on disk.

Returns: Error::Ok on success, or Error::Invalid.

Reimplemented from MediaNode.

◆ process()

void TimecodeOverlayNode::process ( )

overridevirtual

Reads timecode from the input image's metadata and renders it as text.

Dequeues a Frame from the input port, ensures exclusive buffer ownership via copy-on-write, renders the timecode (and optional custom text), then delivers the modified Frame to the output port.

Implements MediaNode.

◆ setCustomText()

void TimecodeOverlayNode::setCustomText ( const String & text )

inline

Sets additional custom text to render below the timecode.

Parameters

text	The custom text string (e.g., "TEST SIGNAL").

◆ setDrawBackground()

void TimecodeOverlayNode::setDrawBackground ( bool enable )

inline

Enables or disables drawing a dark background behind the text.

Parameters

enable true to draw a background rectangle for legibility.

◆ setFontPath()

void TimecodeOverlayNode::setFontPath ( const FilePath & path )

inline

Sets the path to the TrueType font file.

Parameters

path	Path to a .ttf font file (required).

◆ setFontSize()

void TimecodeOverlayNode::setFontSize ( int points )

inline

Sets the font size in points.

Parameters

points Font size (default: 36).

◆ setPosition() [1/2]

void TimecodeOverlayNode::setPosition	(	int	x,
		int	y
	)

inline

Sets a custom text position.

Switches the position mode to Custom.

Parameters

x	X coordinate of the text origin.
y	Y coordinate of the text origin.

◆ setPosition() [2/2]

void TimecodeOverlayNode::setPosition ( Position pos )

inline

Sets the text position using a named preset.

The actual x/y coordinates are computed during process() based on the frame dimensions and font size.

Parameters

pos	The position preset.

◆ setTextColor()

void TimecodeOverlayNode::setTextColor	(	uint16_t	r,
		uint16_t	g,
		uint16_t	b
	)

inline

Sets the text color.

Parameters

r	Red component (0-65535).
g	Green component (0-65535).
b	Blue component (0-65535).

The documentation for this class was generated from the following file:

include/promeki/proav/timecodeoverlaynode.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Position

Constructor & Destructor Documentation

◆ TimecodeOverlayNode()

Member Function Documentation

◆ configure()

◆ process()

◆ setCustomText()

◆ setDrawBackground()

◆ setFontPath()

◆ setFontSize()

◆ setPosition() [1/2]

◆ setPosition() [2/2]

◆ setTextColor()
