UdpSocket Class Reference

Datagram-oriented UDP socket with multicast support. More...

#include <udpsocket.h>

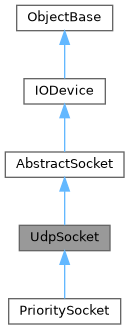

Inheritance diagram for UdpSocket:

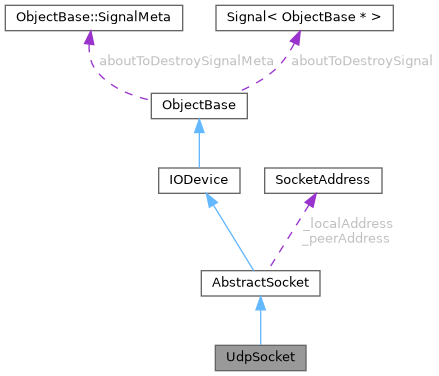

Collaboration diagram for UdpSocket:

Public Member Functions
	UdpSocket (ObjectBase *parent=nullptr)
	Constructs a UdpSocket.
	~UdpSocket () override
	Destructor.
Error	open (OpenMode mode) override
	Opens the socket.
Error	openIpv6 (OpenMode mode)
	Opens the socket for IPv6 operation.
Error	close () override
	Closes the socket.
bool	isOpen () const override
	Returns true if the socket is open.
int64_t	read (void *data, int64_t maxSize) override
	Reads data from a connected UDP socket.
int64_t	write (const void *data, int64_t maxSize) override
	Writes data to a connected UDP socket.
int64_t	bytesAvailable () const override
	Returns the number of bytes available for reading.
ssize_t	writeDatagram (const void *data, size_t size, const SocketAddress &dest)
	Sends a datagram to a specific destination.
ssize_t	writeDatagram (const Buffer &data, const SocketAddress &dest)
	Sends a Buffer as a datagram.
ssize_t	readDatagram (void *data, size_t maxSize, SocketAddress *sender=nullptr)
	Receives a datagram.
bool	hasPendingDatagrams () const
	Returns true if there are pending datagrams to read.
ssize_t	pendingDatagramSize () const
	Returns the size of the next pending datagram.
Error	joinMulticastGroup (const SocketAddress &group)
	Joins a multicast group.
Error	joinMulticastGroup (const SocketAddress &group, const String &iface)
	Joins a multicast group on a specific interface.
Error	leaveMulticastGroup (const SocketAddress &group)
	Leaves a multicast group.
Error	setMulticastTTL (int ttl)
	Sets the multicast TTL (time to live).
Error	setMulticastLoopback (bool enable)
	Enables or disables multicast loopback.
Error	setMulticastInterface (const String &iface)
	Sets the outgoing multicast interface.
Error	setReuseAddress (bool enable)
	Enables or disables SO_REUSEADDR.
Error	setDscp (uint8_t dscp)
	Sets the DSCP (Differentiated Services) value.
Public Member Functions inherited from AbstractSocket
	AbstractSocket (SocketType type, ObjectBase *parent=nullptr)
	Constructs an AbstractSocket.
virtual	~AbstractSocket ()
	Destructor. Closes the socket if open.
SocketType	socketType () const
	Returns the socket type.
SocketState	state () const
	Returns the current socket state.
Error	bind (const SocketAddress &address)
	Binds the socket to a local address.
Error	connectToHost (const SocketAddress &address)
	Initiates a connection to a remote host.
void	disconnectFromHost ()
	Disconnects from the remote host.
SocketAddress	localAddress () const
	Returns the local address the socket is bound to.
SocketAddress	peerAddress () const
	Returns the address of the connected peer.
Error	waitForConnected (unsigned int timeoutMs=0)
	Blocks until the socket is connected or timeout.
int	socketDescriptor () const
	Returns the raw socket file descriptor.
void	setSocketDescriptor (int fd)
	Adopts an existing file descriptor as the socket.
Error	setSocketOption (int level, int option, int value)
	Sets a raw socket option via setsockopt().
Result< int >	socketOption (int level, int option) const
	Gets a raw socket option via getsockopt().
bool	isSequential () const override
	Returns true — sockets are sequential (non-seekable).
	PROMEKI_SIGNAL (connected)
	Emitted when a connection is established.
	PROMEKI_SIGNAL (disconnected)
	Emitted when the socket is disconnected.
	PROMEKI_SIGNAL (stateChanged, SocketState)
	Emitted when the socket state changes.
Public Member Functions inherited from IODevice
	IODevice (ObjectBase *parent=nullptr)
	Constructs an IODevice.
virtual	~IODevice ()
	Destructor.
virtual void	flush ()
	Flushes any buffered output data to the underlying device.
virtual bool	waitForReadyRead (unsigned int timeoutMs=0)
	Waits until data is available for reading or timeout.
virtual bool	waitForBytesWritten (unsigned int timeoutMs=0)
	Waits until all pending data has been written or timeout.
virtual Error	seek (int64_t pos)
	Seeks to the given byte offset from the beginning.
virtual int64_t	pos () const
	Returns the current read/write position.
virtual Result< int64_t >	size () const
	Returns the total size of the device in bytes.
virtual bool	atEnd () const
	Returns true if the current position is at the end.
OpenMode	openMode () const
	Returns the current open mode.
bool	isReadable () const
	Returns true if the device is readable.
bool	isWritable () const
	Returns true if the device is writable.
Error	error () const
	Returns the current error state.
void	clearError ()
	Clears the error state to Ok.
	PROMEKI_SIGNAL (readyRead)
	Emitted when data is available for reading.
	PROMEKI_SIGNAL (bytesWritten, int64_t)
	Emitted when bytes have been written.
	PROMEKI_SIGNAL (errorOccurred, Error)
	Emitted when an error occurs.
	PROMEKI_SIGNAL (aboutToClose)
	Emitted just before the device is closed.
Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.
virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.
ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.
void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.
const ObjectBaseList &	childList () const
	Returns a list of children of this object.
template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.
EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.
void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.
int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.
void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().
template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > *signal, Slot< Args... > *slot)

Additional Inherited Members
Public Types inherited from AbstractSocket
enum	SocketType { TcpSocketType , UdpSocketType , RawSocketType }
	The type of socket. More...
enum	SocketState {   Unconnected , Connecting , Connected , Bound ,   Closing , Listening }
	The current state of the socket. More...
Public Types inherited from IODevice
enum	OpenMode {   NotOpen = 0x00 , ReadOnly = 0x01 , WriteOnly = 0x02 , ReadWrite = ReadOnly | WriteOnly ,   Append = 0x04 | WriteOnly }
	Mode flags controlling how a device is opened. More...
Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.
Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.
template<typename... Args>
static void	connect (Signal< Args... > *signal, Slot< Args... > *slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object
Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)
Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"
static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)
Protected Member Functions inherited from AbstractSocket
Error	createSocket (int domain, int type, int protocol=0)
	Creates the underlying socket descriptor.
void	closeSocket ()
	Closes the socket descriptor.
Error	setNonBlocking (bool enable)
	Sets the socket to non-blocking mode.
void	updateLocalAddress ()
	Updates the local address from the socket descriptor.
void	setState (SocketState state)
	Sets the socket state and emits stateChanged.
Protected Member Functions inherited from IODevice
void	setOpenMode (OpenMode mode)
	Sets the open mode.
void	setError (const Error &err)
	Sets the error state and emits errorOccurred.
Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.
virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.
virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.
Protected Attributes inherited from AbstractSocket
int	_fd = -1
	Socket file descriptor.
SocketState	_state = Unconnected
	Current socket state.
SocketType	_type
	Socket type.
SocketAddress	_localAddress
	Local bound address.
SocketAddress	_peerAddress
	Connected peer address.

Detailed Description

Datagram-oriented UDP socket with multicast support.

UdpSocket provides connectionless datagram communication over UDP. It supports unicast and multicast send/receive, including joining and leaving multicast groups with optional interface binding.

For connected-mode UDP (via connectToHost()), the standard IODevice read()/write() methods can be used. For connectionless operation, use writeDatagram()/readDatagram() with explicit destination/source addresses.

This class must only be used from the thread that created it (or moved to via moveToThread()).

Example

UdpSocket sock;
sock.open(IODevice::ReadWrite);
sock.bind(SocketAddress::any(5004));

// Send a datagram
SocketAddress dest(Ipv4Address(239, 0, 0, 1), 5004);
sock.writeDatagram("hello", 5, dest);

// Receive a datagram
char buf[1500];
SocketAddress sender;
ssize_t n = sock.readDatagram(buf, sizeof(buf), &sender);

Constructor & Destructor Documentation

UdpSocket()

UdpSocket::UdpSocket

(

ObjectBase *

parent = nullptr

)

Constructs a UdpSocket.

Parameters

parent

The parent object, or nullptr.

Member Function Documentation

bytesAvailable()

int64_t UdpSocket::bytesAvailable ( ) const

overridevirtual

Returns the number of bytes available for reading.

Returns

Bytes available, or 0 if unknown.

Reimplemented from IODevice.

close()

Error UdpSocket::close ( )

overridevirtual

Closes the socket.

Returns

Error::Ok on success, or an error on failure.

Implements IODevice.

hasPendingDatagrams()

bool UdpSocket::hasPendingDatagrams

(

)

const

Returns true if there are pending datagrams to read.

Returns

True if a datagram is available.

isOpen()

bool UdpSocket::isOpen ( ) const

inlineoverridevirtual

Returns true if the socket is open.

Implements IODevice.

joinMulticastGroup() [1/2]

Error UdpSocket::joinMulticastGroup

(

const SocketAddress &

group

)

Joins a multicast group.

Parameters

group

The multicast group address and port.

Returns

Error::Ok on success, or an error on failure.

joinMulticastGroup() [2/2]

Error UdpSocket::joinMulticastGroup	(	const SocketAddress &	group,
		const String &	iface
	)

Joins a multicast group on a specific interface.

Parameters

group	The multicast group address.
iface	The network interface name (e.g. "eth0").

Returns

Error::Ok on success, or an error on failure.

leaveMulticastGroup()

Error UdpSocket::leaveMulticastGroup

(

const SocketAddress &

group

)

Leaves a multicast group.

Parameters

group

The multicast group address.

Returns

Error::Ok on success, or an error on failure.

open()

Error UdpSocket::open ( OpenMode  mode )

overridevirtual

Opens the socket.

Creates an AF_INET SOCK_DGRAM socket. Use openIpv6() if IPv6 is needed.

Parameters

mode	The open mode (typically ReadWrite).

Returns

Error::Ok on success, or an error on failure.

Implements IODevice.

openIpv6()

Error UdpSocket::openIpv6

(

OpenMode

mode

)

Opens the socket for IPv6 operation.

Creates an AF_INET6 SOCK_DGRAM socket. By default, IPV6_V6ONLY is disabled so IPv4-mapped addresses work.

Parameters

mode	The open mode.

Returns

Error::Ok on success, or an error on failure.

pendingDatagramSize()

ssize_t UdpSocket::pendingDatagramSize

(

)

const

Returns the size of the next pending datagram.

Returns

The datagram size in bytes, or -1 if no datagram.

read()

int64_t UdpSocket::read ( void *  data, int64_t  maxSize  )

overridevirtual

Reads data from a connected UDP socket.

Requires a prior connectToHost() call.

Parameters

data	Buffer to read into.
maxSize	Maximum bytes to read.

Returns

Bytes read, or -1 on error.

Implements IODevice.

readDatagram()

ssize_t UdpSocket::readDatagram	(	void *	data,
		size_t	maxSize,
		SocketAddress *	sender = nullptr
	)

Receives a datagram.

Parameters

	data	Buffer to receive into.
	maxSize	Maximum bytes to receive.
[out]	sender	If not null, receives the sender's address.

Returns

Bytes received, or -1 on error.

setDscp()

Error UdpSocket::setDscp

(

uint8_t

dscp

)

Sets the DSCP (Differentiated Services) value.

Used for QoS marking on outgoing packets. The value is the 6-bit DSCP field shifted left by 2 to form the full TOS byte (e.g. AF41 = 0x22 << 2 = 0x88, but pass 0x22).

Parameters

dscp	The DSCP value (0-63).

Returns

Error::Ok on success, or an error on failure.

setMulticastInterface()

Error UdpSocket::setMulticastInterface

(

const String &

iface

)

Sets the outgoing multicast interface.

Parameters

iface

The network interface name (e.g. "eth0").

Returns

Error::Ok on success, or an error on failure.

setMulticastLoopback()

Error UdpSocket::setMulticastLoopback

(

bool

enable

)

Enables or disables multicast loopback.

When enabled, multicast packets sent on this socket are looped back to local receivers on the same host.

Parameters

enable

True to enable loopback, false to disable.

Returns

Error::Ok on success, or an error on failure.

setMulticastTTL()

Error UdpSocket::setMulticastTTL

(

int

ttl

)

Sets the multicast TTL (time to live).

Parameters

ttl	The TTL value (1-255).

Returns

Error::Ok on success, or an error on failure.

setReuseAddress()

Error UdpSocket::setReuseAddress

(

bool

enable

)

Enables or disables SO_REUSEADDR.

Must be called before bind(). Required for multiple processes to receive from the same multicast group+port.

Parameters

enable

True to enable, false to disable.

Returns

Error::Ok on success, or an error on failure.

write()

int64_t UdpSocket::write ( const void *  data, int64_t  maxSize  )

overridevirtual

Writes data to a connected UDP socket.

Requires a prior connectToHost() call.

Parameters

data	Data to send.
maxSize	Bytes to send.

Returns

Bytes sent, or -1 on error.

Implements IODevice.

writeDatagram() [1/2]

ssize_t UdpSocket::writeDatagram	(	const Buffer &	data,
		const SocketAddress &	dest
	)

Sends a Buffer as a datagram.

Parameters

data	The buffer to send.
dest	The destination address and port.

Returns

Bytes sent, or -1 on error.

writeDatagram() [2/2]

ssize_t UdpSocket::writeDatagram	(	const void *	data,
		size_t	size,
		const SocketAddress &	dest
	)

Sends a datagram to a specific destination.

Parameters

data	Pointer to the data.
size	Number of bytes to send.
dest	The destination address and port.

Returns

Bytes sent, or -1 on error.

---

The documentation for this class was generated from the following file:

• include/promeki/network/udpsocket.h
