MulticastManager Class Reference

Manages multicast group membership for multi-stream scenarios. More...

#include <multicastmanager.h>

Inheritance diagram for MulticastManager:

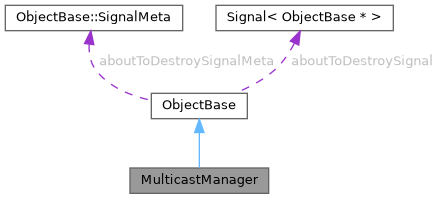

Collaboration diagram for MulticastManager:

Public Member Functions
	MulticastManager (ObjectBase *parent=nullptr)
	Constructs a MulticastManager.
	~MulticastManager () override
	Destructor. Leaves all managed groups.
Error	joinGroup (const SocketAddress &group, UdpSocket *socket)
	Joins a multicast group on a socket.
Error	joinGroup (const SocketAddress &group, UdpSocket *socket, const String &iface)
	Joins a multicast group on a specific interface.
Error	leaveGroup (const SocketAddress &group, UdpSocket *socket)
	Leaves a multicast group on a socket.
void	leaveAllGroups ()
	Leaves all managed multicast groups.
List< SocketAddress >	activeGroups () const
	Returns a list of all active multicast group addresses.
bool	isMemberOf (const SocketAddress &group) const
	Returns true if any socket is a member of the group.
Error	joinSourceGroup (const SocketAddress &group, const SocketAddress &source, UdpSocket *socket)
	Joins a Source-Specific Multicast group.
Error	leaveSourceGroup (const SocketAddress &group, const SocketAddress &source, UdpSocket *socket)
	Leaves a Source-Specific Multicast group.
void	setDefaultInterface (const String &iface)
	Sets the default network interface for joins.
const String &	defaultInterface () const
	Returns the default interface name.
	PROMEKI_SIGNAL (groupJoined, SocketAddress)
	Emitted when a multicast group is joined.
	PROMEKI_SIGNAL (groupLeft, SocketAddress)
	Emitted when a multicast group is left.
Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.
virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.
ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.
void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.
const ObjectBaseList &	childList () const
	Returns a list of children of this object.
template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.
EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.
void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.
int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.
void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().
template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > *signal, Slot< Args... > *slot)

Additional Inherited Members
Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.
Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.
template<typename... Args>
static void	connect (Signal< Args... > *signal, Slot< Args... > *slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object
Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)
Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"
static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)
Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.
virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.
virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.

Detailed Description

Manages multicast group membership for multi-stream scenarios.

MulticastManager tracks which sockets have joined which multicast groups, providing centralized management and cleanup. It supports both Any-Source Multicast (ASM) and Source-Specific Multicast (SSM).

Note

All managed sockets must remain valid for the lifetime of their memberships. MulticastManager does not take ownership of socket pointers.

Example

MulticastManager mgr;
UdpSocket sock;
sock.open(IODevice::ReadWrite);
sock.setReuseAddress(true);
sock.bind(SocketAddress::any(5004));

SocketAddress group(Ipv4Address(239, 0, 0, 1), 5004);
mgr.joinGroup(group, &sock);

// Later...
mgr.leaveAllGroups();

Constructor & Destructor Documentation

MulticastManager()

MulticastManager::MulticastManager

(

ObjectBase *

parent = nullptr

)

Constructs a MulticastManager.

Parameters

parent

The parent object, or nullptr.

Member Function Documentation

isMemberOf()

bool MulticastManager::isMemberOf

(

const SocketAddress &

group

)

const

Returns true if any socket is a member of the group.

Parameters

group

The multicast group to check.

Returns

True if the group is active.

joinGroup() [1/2]

Error MulticastManager::joinGroup	(	const SocketAddress &	group,
		UdpSocket *	socket
	)

Joins a multicast group on a socket.

Parameters

group	The multicast group address.
socket	The UDP socket to join with.

Returns

Error::Ok on success, or an error on failure.

joinGroup() [2/2]

Error MulticastManager::joinGroup	(	const SocketAddress &	group,
		UdpSocket *	socket,
		const String &	iface
	)

Joins a multicast group on a specific interface.

Parameters

group	The multicast group address.
socket	The UDP socket to join with.
iface	The network interface name (e.g. "eth0").

Returns

Error::Ok on success, or an error on failure.

joinSourceGroup()

Error MulticastManager::joinSourceGroup	(	const SocketAddress &	group,
		const SocketAddress &	source,
		UdpSocket *	socket
	)

Joins a Source-Specific Multicast group.

Subscribes to multicast traffic from a specific source only (IP_ADD_SOURCE_MEMBERSHIP).

Parameters

group	The multicast group address.
source	The source address to accept traffic from.
socket	The UDP socket.

Returns

Error::Ok on success, or an error on failure.

leaveGroup()

Error MulticastManager::leaveGroup	(	const SocketAddress &	group,
		UdpSocket *	socket
	)

Leaves a multicast group on a socket.

Parameters

group	The multicast group address.
socket	The UDP socket to leave from.

Returns

Error::Ok on success, or an error on failure.

leaveSourceGroup()

Error MulticastManager::leaveSourceGroup	(	const SocketAddress &	group,
		const SocketAddress &	source,
		UdpSocket *	socket
	)

Leaves a Source-Specific Multicast group.

Parameters

group	The multicast group address.
source	The source address.
socket	The UDP socket.

Returns

Error::Ok on success, or an error on failure.

PROMEKI_SIGNAL() [1/2]

MulticastManager::PROMEKI_SIGNAL	(	groupJoined	,
		SocketAddress
	)

Emitted when a multicast group is joined.

Signal:

PROMEKI_SIGNAL() [2/2]

MulticastManager::PROMEKI_SIGNAL	(	groupLeft	,
		SocketAddress
	)

Emitted when a multicast group is left.

Signal:

setDefaultInterface()

void MulticastManager::setDefaultInterface ( const String &  iface )

inline

Sets the default network interface for joins.

Used when joinGroup() is called without an explicit interface. Only affects future joins, not existing memberships.

Parameters

iface

The interface name (e.g. "eth0").

---

The documentation for this class was generated from the following file:

• include/promeki/network/multicastmanager.h
