TcpServer Class Reference

TCP server that listens for incoming connections. More...

#include <tcpserver.h>

Inheritance diagram for TcpServer:

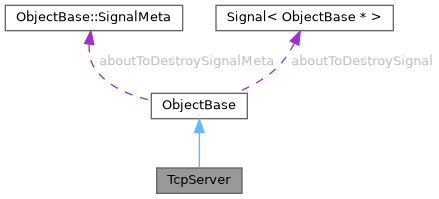

Collaboration diagram for TcpServer:

Public Member Functions
	TcpServer (ObjectBase *parent=nullptr)
	Constructs a TcpServer.
	~TcpServer () override
	Destructor. Closes the server if listening.
Error	listen (const SocketAddress &address, int backlog=50)
	Starts listening for connections.
void	close ()
	Stops listening and closes the server socket.
bool	isListening () const
	Returns true if the server is listening.
SocketAddress	serverAddress () const
	Returns the address the server is listening on.
TcpSocket *	nextPendingConnection ()
	Returns the next accepted connection.
bool	hasPendingConnections () const
	Returns true if there are pending connections.
Error	waitForNewConnection (unsigned int timeoutMs=0)
	Blocks until a new connection arrives or timeout.
void	setMaxPendingConnections (int count)
	Sets the maximum number of pending connections.
	PROMEKI_SIGNAL (newConnection)
	Emitted when a new connection is available.
Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.
virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.
ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.
void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.
const ObjectBaseList &	childList () const
	Returns a list of children of this object.
template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.
EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.
void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.
int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.
void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().
template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > *signal, Slot< Args... > *slot)

Additional Inherited Members
Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.
Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.
template<typename... Args>
static void	connect (Signal< Args... > *signal, Slot< Args... > *slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object
Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)
Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"
static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)
Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.
virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.
virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.

Detailed Description

TCP server that listens for incoming connections.

TcpServer binds to a local address and listens for incoming TCP connections. Accepted connections are returned as TcpSocket objects.

This class must only be used from the thread that created it (or moved to via moveToThread()).

Example

TcpServer server;
server.listen(SocketAddress::any(8080));
server.waitForNewConnection(5000);
TcpSocket *client = server.nextPendingConnection();

Constructor & Destructor Documentation

TcpServer()

TcpServer::TcpServer

(

ObjectBase *

parent = nullptr

)

Constructs a TcpServer.

Parameters

parent

The parent object, or nullptr.

Member Function Documentation

hasPendingConnections()

bool TcpServer::hasPendingConnections

(

)

const

Returns true if there are pending connections.

Returns

True if at least one connection is waiting.

listen()

Error TcpServer::listen	(	const SocketAddress &	address,
		int	backlog = 50
	)

Starts listening for connections.

Parameters

address	The local address and port to listen on.
backlog	The maximum pending connection queue length.

Returns

Error::Ok on success, or an error on failure.

nextPendingConnection()

TcpSocket * TcpServer::nextPendingConnection

(

)

Returns the next accepted connection.

The caller takes ownership of the returned TcpSocket. Returns nullptr if no pending connections.

Returns

A new TcpSocket for the accepted connection, or nullptr.

PROMEKI_SIGNAL()

TcpServer::PROMEKI_SIGNAL

(

newConnection

)

Emitted when a new connection is available.

Signal:

setMaxPendingConnections()

void TcpServer::setMaxPendingConnections ( int  count )

inline

Sets the maximum number of pending connections.

Parameters

count

The maximum count.

waitForNewConnection()

Error TcpServer::waitForNewConnection

(

unsigned int

timeoutMs = 0

)

Blocks until a new connection arrives or timeout.

Parameters

timeoutMs

Timeout in milliseconds (0 = wait forever).

Returns

Error::Ok if a connection arrived, Error::Timeout on timeout.

---

The documentation for this class was generated from the following file:

• include/promeki/network/tcpserver.h
