RtpSession Class Reference

RTP session for sending and receiving packets (RFC 3550). More...

#include <rtpsession.h>

Inheritance diagram for RtpSession:

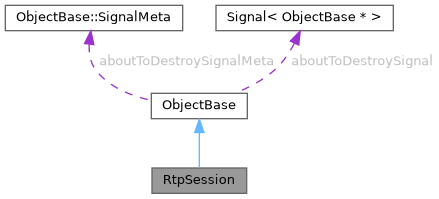

Collaboration diagram for RtpSession:

Public Member Functions
	RtpSession (ObjectBase *parent=nullptr)
	Constructs an RtpSession.
	~RtpSession () override
	Destructor. Stops the session if running.
Error	start (const SocketAddress &localAddr)
	Starts the session, binding to a local address.
void	stop ()
	Stops the session and closes the socket.
bool	isRunning () const
	Returns true if the session is started.
Error	sendPacket (const Buffer &payload, uint32_t timestamp, uint8_t payloadType, const SocketAddress &dest, bool marker=false)
	Sends a single RTP packet with raw payload data.
Error	sendPackets (RtpPacket::List &packets, uint32_t timestamp, const SocketAddress &dest, bool markerOnLast=true)
	Sends pre-packed RTP packets from a payload handler.
uint32_t	ssrc () const
	Returns the locally generated SSRC.
void	setSsrc (uint32_t ssrc)
	Overrides the auto-generated SSRC.
uint16_t	sequenceNumber () const
	Returns the current sequence number.
void	setPayloadType (uint8_t pt)
	Sets the default payload type.
uint8_t	payloadType () const
	Returns the default payload type.
void	setClockRate (uint32_t hz)
	Sets the RTP timestamp clock rate in Hz.
uint32_t	clockRate () const
	Returns the RTP timestamp clock rate.
UdpSocket *	socket () const
	Returns the internal UDP socket.
	PROMEKI_SIGNAL (packetReceived, Buffer, uint32_t, uint8_t, bool)
	Emitted when a packet is received.
	PROMEKI_SIGNAL (ssrcCollision, uint32_t)
	Emitted when an SSRC collision is detected.
Public Member Functions inherited from ObjectBase
	ObjectBase (ObjectBase *p=nullptr)
	Default ObjectBase constructor.
virtual	~ObjectBase ()
	Destructor. Emits aboutToDestroy, detaches from parent, and destroys children.
ObjectBase *	parent () const
	Returns the parent object, if one. nullptr if none.
void	setParent (ObjectBase *p)
	Sets the parent of this object. If the object already has a parent, it will be removed as a child from the old parent and added as a child to the new one.
const ObjectBaseList &	childList () const
	Returns a list of children of this object.
template<typename... Args>
int	registerSlot (Slot< Args... > *slot)
	Registers a slot with this object and assigns it an ID.
EventLoop *	eventLoop () const
	Returns the EventLoop this object is affiliated with.
void	moveToThread (EventLoop *loop)
	Changes the EventLoop affinity of this object.
int	startTimer (unsigned int intervalMs, bool singleShot=false)
	Starts a timer on this object's EventLoop.
void	stopTimer (int timerId)
	Stops a timer previously started with startTimer().
template<typename... Args>
PROMEKI_NAMESPACE_BEGIN void	connect (Signal< Args... > *signal, Slot< Args... > *slot)

Additional Inherited Members
Public Types inherited from ObjectBase
using	SlotVariantFunc = std::function< void(const VariantList &)>
	Function type for invoking a slot with a list of Variants.
Static Public Member Functions inherited from ObjectBase
static const MetaInfo &	metaInfo ()
	Returns the MetaInfo for the ObjectBase class.
template<typename... Args>
static void	connect (Signal< Args... > *signal, Slot< Args... > *slot)
	connects a signal and slot together. This function assumes both the signal and slot exist in a ObjectBase or derived object
Public Attributes inherited from ObjectBase
Signal< ObjectBase * >	aboutToDestroySignal = Signal< ObjectBase * >(this, aboutToDestroySignalName)
Static Public Attributes inherited from ObjectBase
static constexpr const char *	aboutToDestroySignalName = PROMEKI_STRINGIFY( aboutToDestroy ) "(" PROMEKI_STRINGIFY_ARGS( ObjectBase * ) ")"
static SignalMeta	aboutToDestroySignalMeta = SignalMeta(metaInfo(), aboutToDestroySignalName)
Protected Member Functions inherited from ObjectBase
ObjectBase *	signalSender ()
	Returns the ObjectBase that emitted the signal currently being handled.
virtual void	event (Event *e)
	Called by EventLoop to deliver events to this object.
virtual void	timerEvent (TimerEvent *e)
	Called when a timer fires for this object.

Detailed Description

RTP session for sending and receiving packets (RFC 3550).

RtpSession manages the RTP protocol state for a single synchronization source (SSRC). It handles RTP header construction, sequence number management, and timestamp tracking.

The session operates on pre-built RtpPacket lists from RtpPayload handlers. It fills in the RTP header fields (version, payload type, sequence number, timestamp, SSRC, marker bit) and transmits via a UdpSocket.

Example

RtpSession session;
session.setPayloadType(96);
session.setClockRate(90000);
Error err = session.start(SocketAddress::any(0));

// Send pre-packed RTP packets
RtpPayloadJpeg payload(1920, 1080);
auto packets = payload.pack(jpegData, jpegSize);
session.sendPackets(packets, timestamp, dest, true);

Constructor & Destructor Documentation

RtpSession()

RtpSession::RtpSession

(

ObjectBase *

parent = nullptr

)

Constructs an RtpSession.

Parameters

parent

The parent object, or nullptr.

Member Function Documentation

PROMEKI_SIGNAL() [1/2]

RtpSession::PROMEKI_SIGNAL	(	packetReceived	,
		Buffer	,
		uint32_t	,
		uint8_t	,
		bool
	)

Emitted when a packet is received.

Parameters: payload data (Buffer), RTP timestamp (uint32_t), payload type (uint8_t), marker bit (bool).

Signal:

PROMEKI_SIGNAL() [2/2]

RtpSession::PROMEKI_SIGNAL	(	ssrcCollision	,
		uint32_t
	)

Emitted when an SSRC collision is detected.

Signal:

sendPacket()

Error RtpSession::sendPacket	(	const Buffer &	payload,
		uint32_t	timestamp,
		uint8_t	payloadType,
		const SocketAddress &	dest,
		bool	marker = false
	)

Sends a single RTP packet with raw payload data.

Constructs a complete RTP packet with header and sends it.

Parameters

payload	The payload data.
timestamp	The RTP timestamp for this packet.
payloadType	The RTP payload type.
dest	The destination address.
marker	If true, the marker bit is set.

Returns

Error::Ok on success, or an error on failure.

sendPackets()

Error RtpSession::sendPackets	(	RtpPacket::List &	packets,
		uint32_t	timestamp,
		const SocketAddress &	dest,
		bool	markerOnLast = true
	)

Sends pre-packed RTP packets from a payload handler.

Fills in the RTP header fields on each packet and transmits. The marker bit is set on the last packet in the list (end of frame/access unit).

Parameters

packets	The pre-packed packet list. Modified in-place: RTP header fields are overwritten before transmission.
timestamp	The RTP timestamp for this frame.
dest	The destination address.
markerOnLast	If true, set marker bit on the last packet.

Returns

Error::Ok on success, or an error on first failure.

socket()

UdpSocket * RtpSession::socket ( ) const

inline

Returns the internal UDP socket.

Use this to configure socket options (DSCP, multicast, etc.) after calling start().

Returns

Pointer to the socket, or nullptr if not started.

start()

Error RtpSession::start

(

const SocketAddress &

localAddr

)

Starts the session, binding to a local address.

Creates and opens the internal UDP socket, then binds it to the specified local address. Use port 0 to let the OS assign a port.

Parameters

localAddr

The local address and port to bind to.

Returns

Error::Ok on success, or an error on failure.

---

The documentation for this class was generated from the following file:

• include/promeki/network/rtpsession.h
